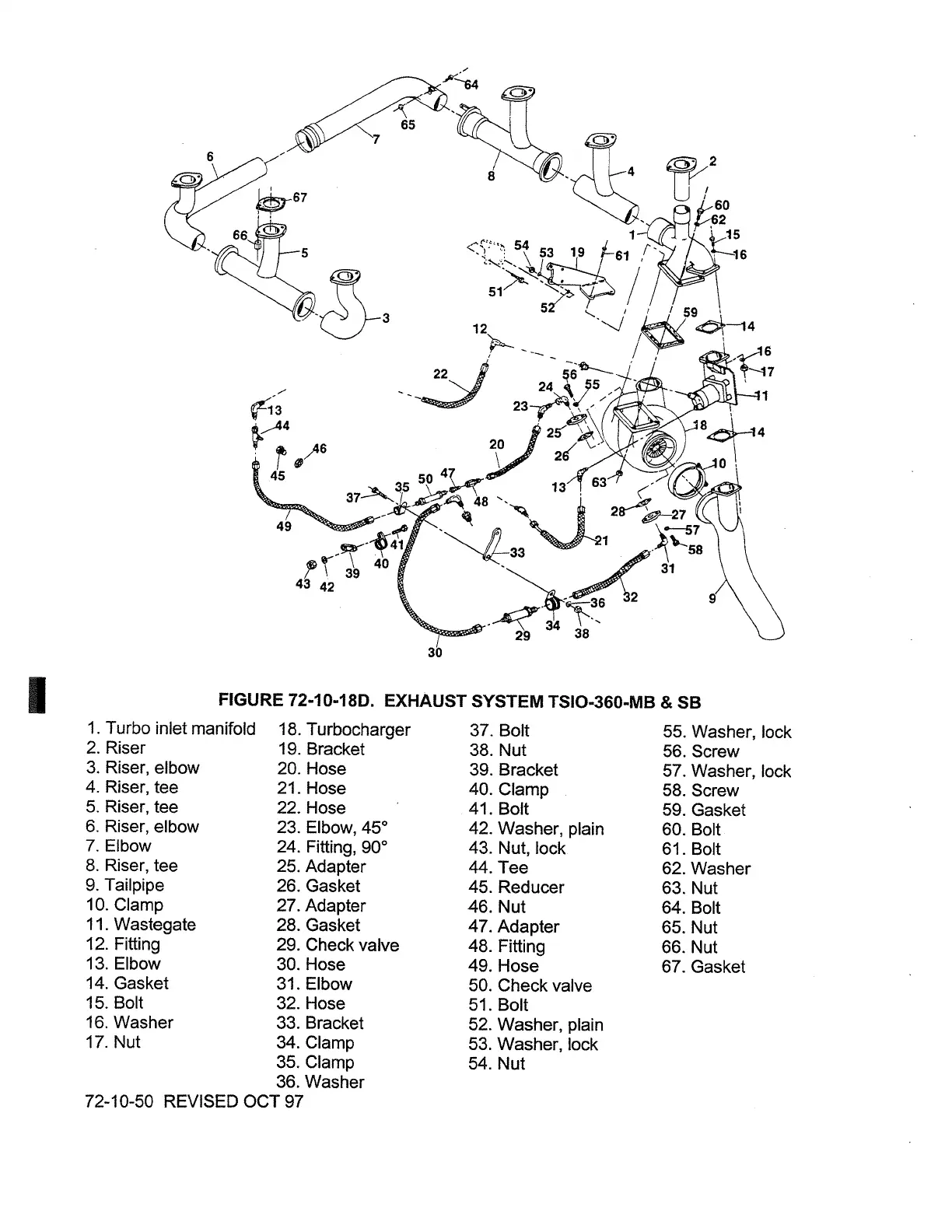

FIGURE 72-1 0-1 8D. EXHAUST SYSTEM TSIO-360-MB & SB
1. Turbo inlet manifold
18. Turbocharger
2. Riser 19. Bracket
3. Riser, elbow 20. Hose
4. Riser, tee 21. Hose
5. Riser, tee 22. Hose
6. Riser, elbow
23. Elbow, 45"
7. Elbow 24. Fitting, 90"
8. Riser, tee 25. Adapter
9. Tailpipe 26. Gasket
10. Clamp 27. Adapter
1
1. Wastegate 28. Gasket
12. Fitting 29. Check valve
13. Elbow
30. Hose
14. Gasket 31. Elbow
15. Bolt 32. Hose
16. Washer 33. Bracket
17. Nut 34. Clamp
35. Clamp
36. Washer
72-10-50 REVISED OCT 97
37. Bolt
38. Nut
39. Bracket
40. Clamp
slq. Bolt
42. Washer, plain
43. Nut, lock
44. Tee
45. Reducer
46. Nut
47. Adapter
48. Fitting
49. Hose
50. Check valve
51. Bolt
52. Washer, plain
53. Washer, lock
54. Nut
55. Washer, lock
56. Screw
57. Washer, lock
58. Screw
59. Gasket
60. Bolt
61. Bolt
62. Washer
63. Nut
64. Bolt
65. Nut
66. Nut
67. Gasket
