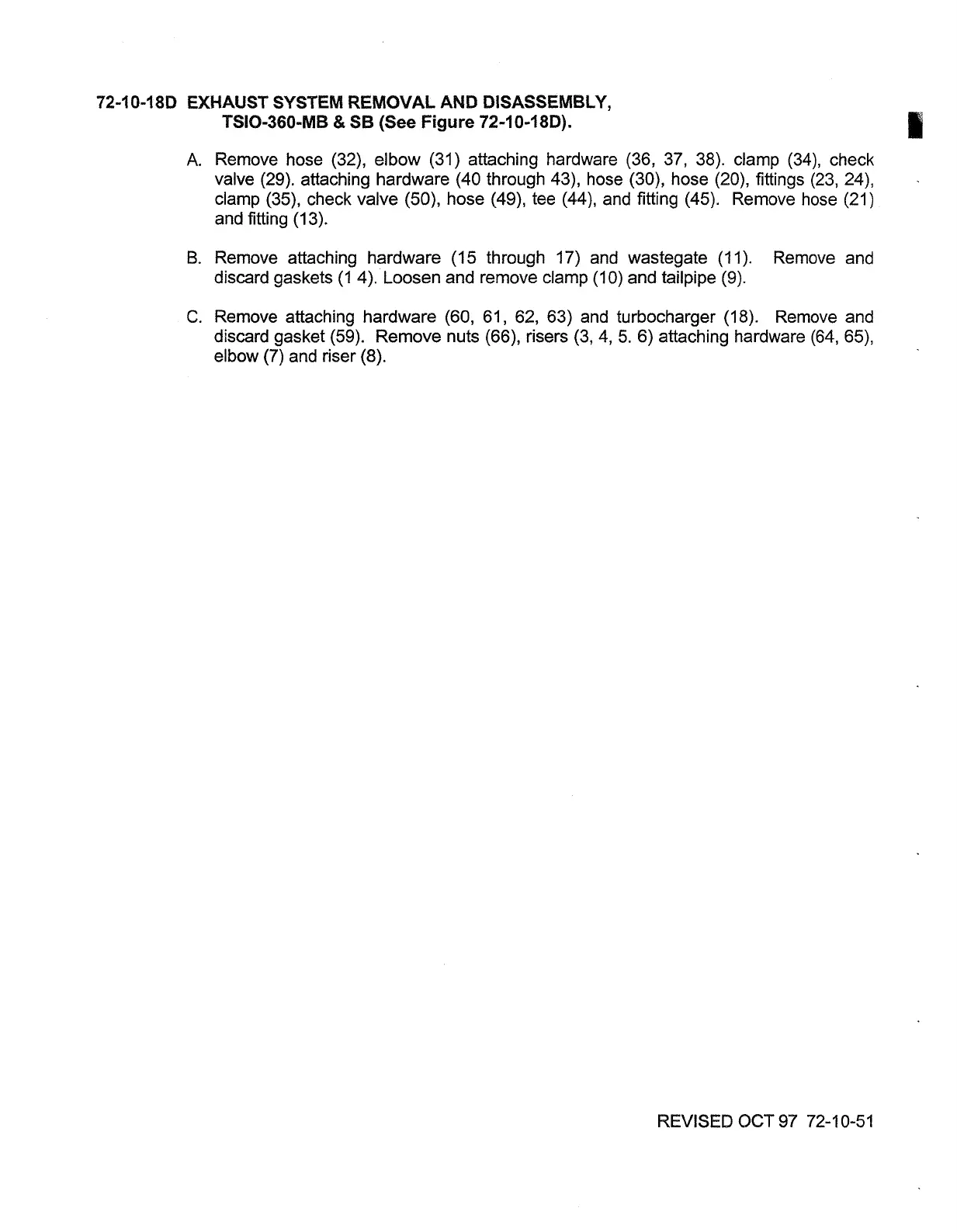

72-1 0-18D EXHAUST
SYSf
EM REMOVAL AND DISASSEMBLY,
TSIQ-360-MB
&
SB (See
Figure
72-10-18D).
A.
Remove hose (32), elbow (31) attaching hardware (36, 37, 38). clamp (34), check
valve (29). attaching hardware (40 through
43), hose (30), hose (20), fittings (23, 24),
clamp (35), check valve (50), hose (49), tee (44), and fitting (45). Remove hose (21)
and fitting
(13).
B.
Remove attaching hardware (15 through 17) and wastegate (11).
Remove and
discard gaskets
(1 4). Loosen and remove clamp (1
0)
and tailpipe
(9).
C.
Remove attaching hardware (60, 61, 62, 63) and turbocharger (18). Remove and
discard gasket (59). Remove nuts
(66), risers (3, 4,
5.
6) attaching hardware (64, 65),
elbow
(7)
and riser
(8).
REVISED
OCT 99 72-1 0-51
