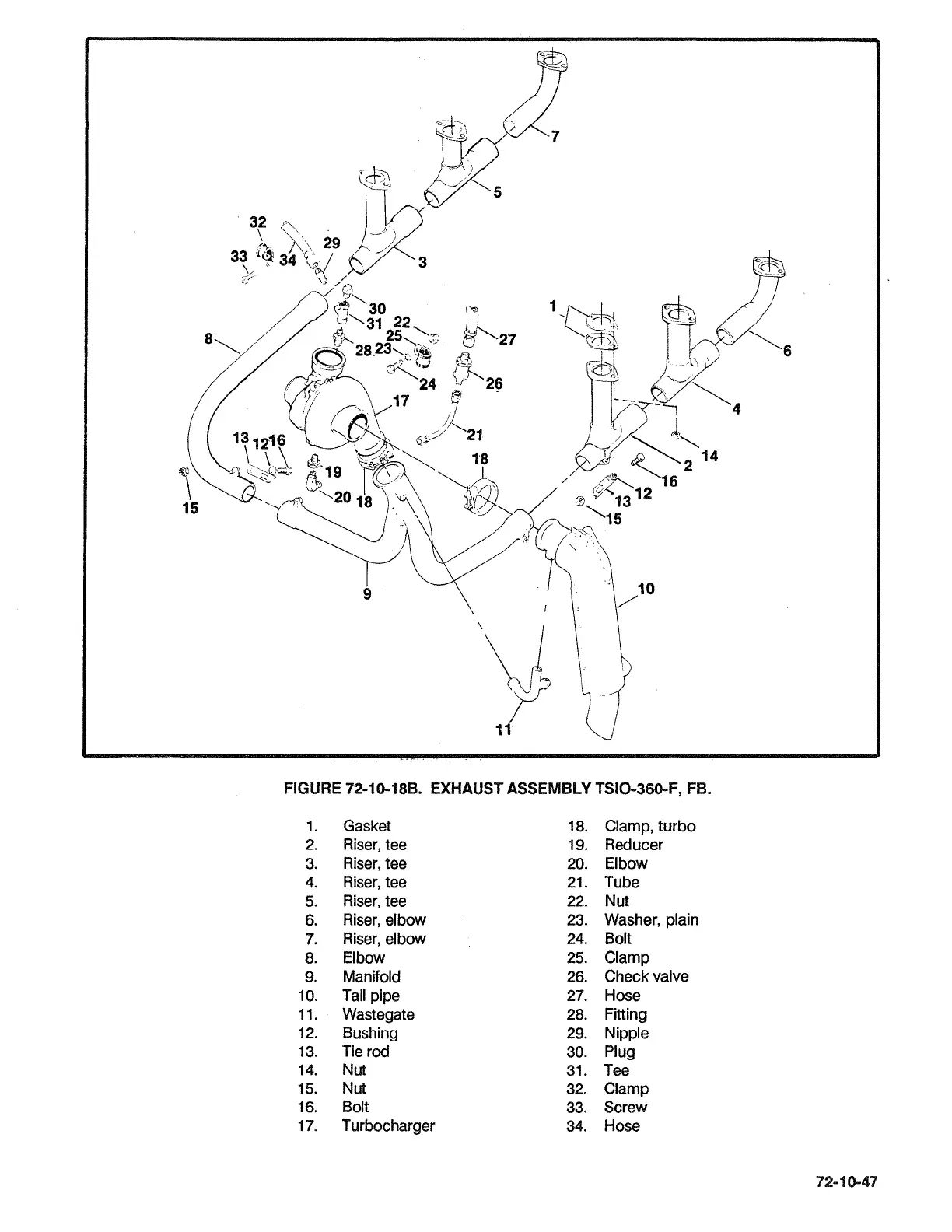

FIGURE
72-10-188. EXHAUST ASSEMBLY TS10-360-F,
FB.
Gasket
Riser, tee
Riser, tee
Riser, tee
Riser, tee
Riser, elbow
Riser, elbow
Elbow
Manifold
Tail pipe
Wastegate
Bushing
Tie rod
Nut
Nut
Bolt
Turbocharger
Clamp, turbo
Reducer
El bow
Tube
Nut
Washer, plain
Bolt
Clamp
Check valve
Hose
Fiing
Nipple
Plug
Tee
Clamp
Screw
Hose
