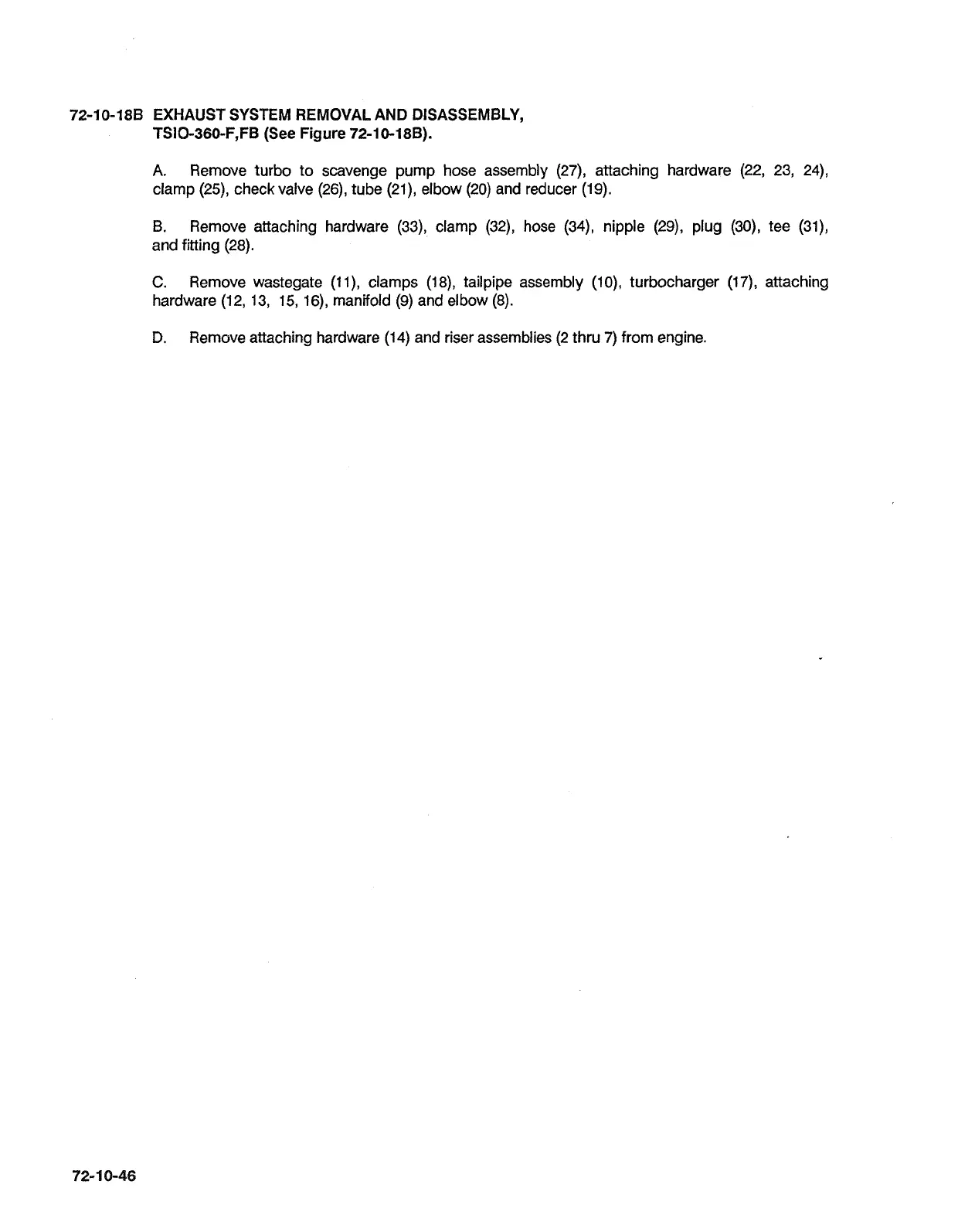

72-10-18B EXHAUST SYSTEM REMOVAL AND DISASSEMBLY,
TSlO-360-F,FB (See Figure 72-1 0-1 88).
A. Remove turbo to scavenge pump hose assembly (27), attaching hardware (22, 23, 24),
clamp (25), check valve (26), tube (21), elbow (20) and reducer (1 9).
B. Remove attaching hardware (33), clamp (32), hose (34), nipple (29), plug (30), tee (31),
and fitting (28).
C.
Remove wastegate (1 I), clamps (1 8), tailpipe assembly (1 O), turbocharger (1 7), attaching
hardware
(1 2, 13, 15, 16), manifold (9) and el bow (8).
D.
Remove attaching hardware (14) and riser assemblies (2 thru 7) from engine.
