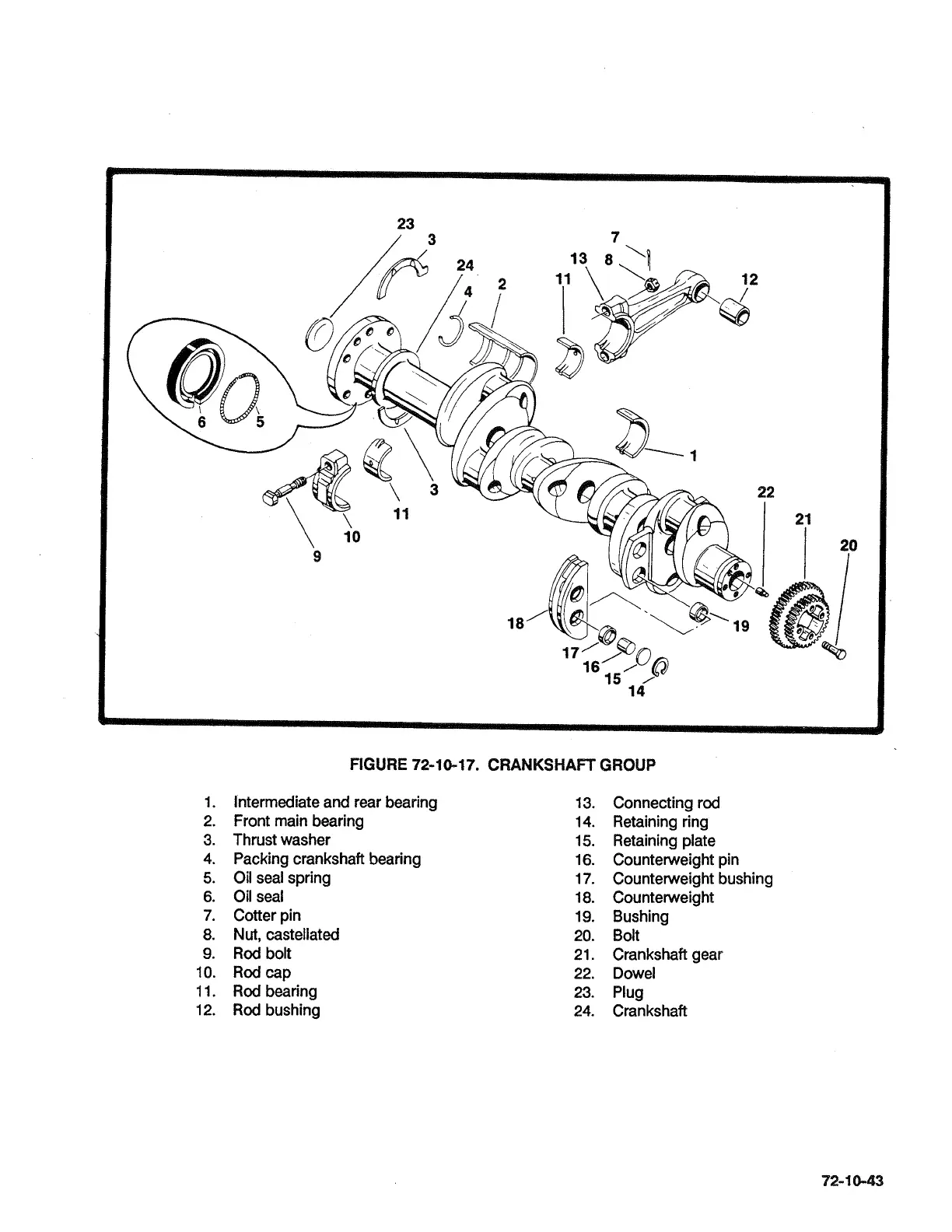

FIGURE
72-10-17.
CRANKSHAFT
GROUP
Intermediate and rear bearing
Front main bearing
Thrust washer
Packing crankshaft bearing
Oil seal spring
Oil seal
Cotter pin
Nut,
castellated
Rod bolt
Rod
cap
Rod bearing
Rod bushing
Connecting rod
Retaining ring
Retaining plate
Counterweight pin
Counterweight bushing
Counterweight
Bushing
Bolt
Crankshaft gear
Dowel
Plug
Crankshaft
