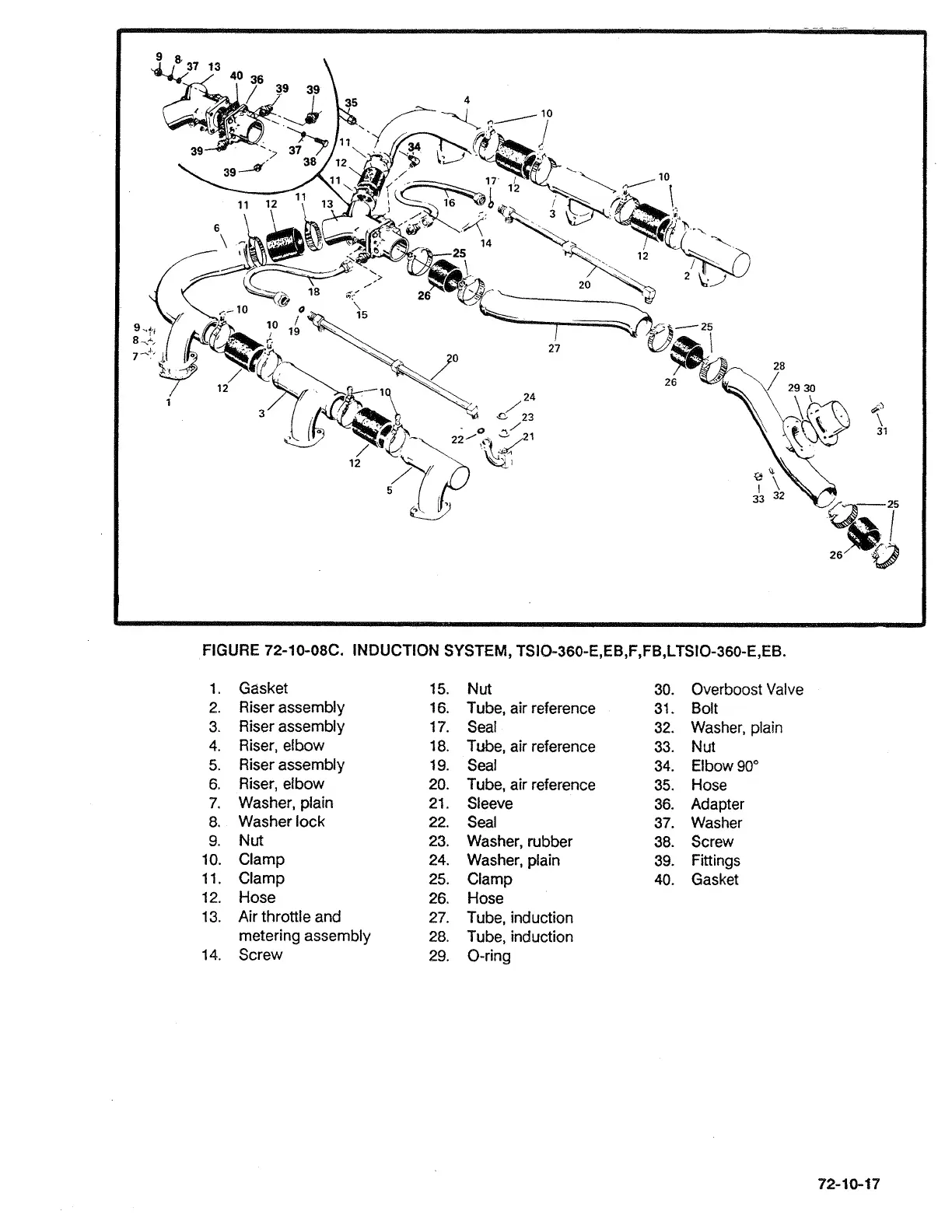

FIGURE 72-10-08C. INDUCTION SYSTEM,
TSIQ-360-E,EB,F,FB,LTSIO-360-E,EB.
Gasket
Riser assembly
Riser assembly
Riser, efbow
Riser assembly
Riser, elbow
Washer, plain
Washer lock
Nut
Clamp
Clamp
Hose
Air throttle and
metering assembly
Screw
Nut
Tube, air reference
Seal
Tube, air reference
Seal
Tube, air reference
Sleeve
Seal
Washer, rubber
Washer, plain
Clamp
Hose
Tube, induction
Tube, induction
O-ring
Overboost Valve
Bolt
Washer, plain
Nut
Elbow
90"
Hose
Adapter
Washer
Screw
Fittings
Gasket
