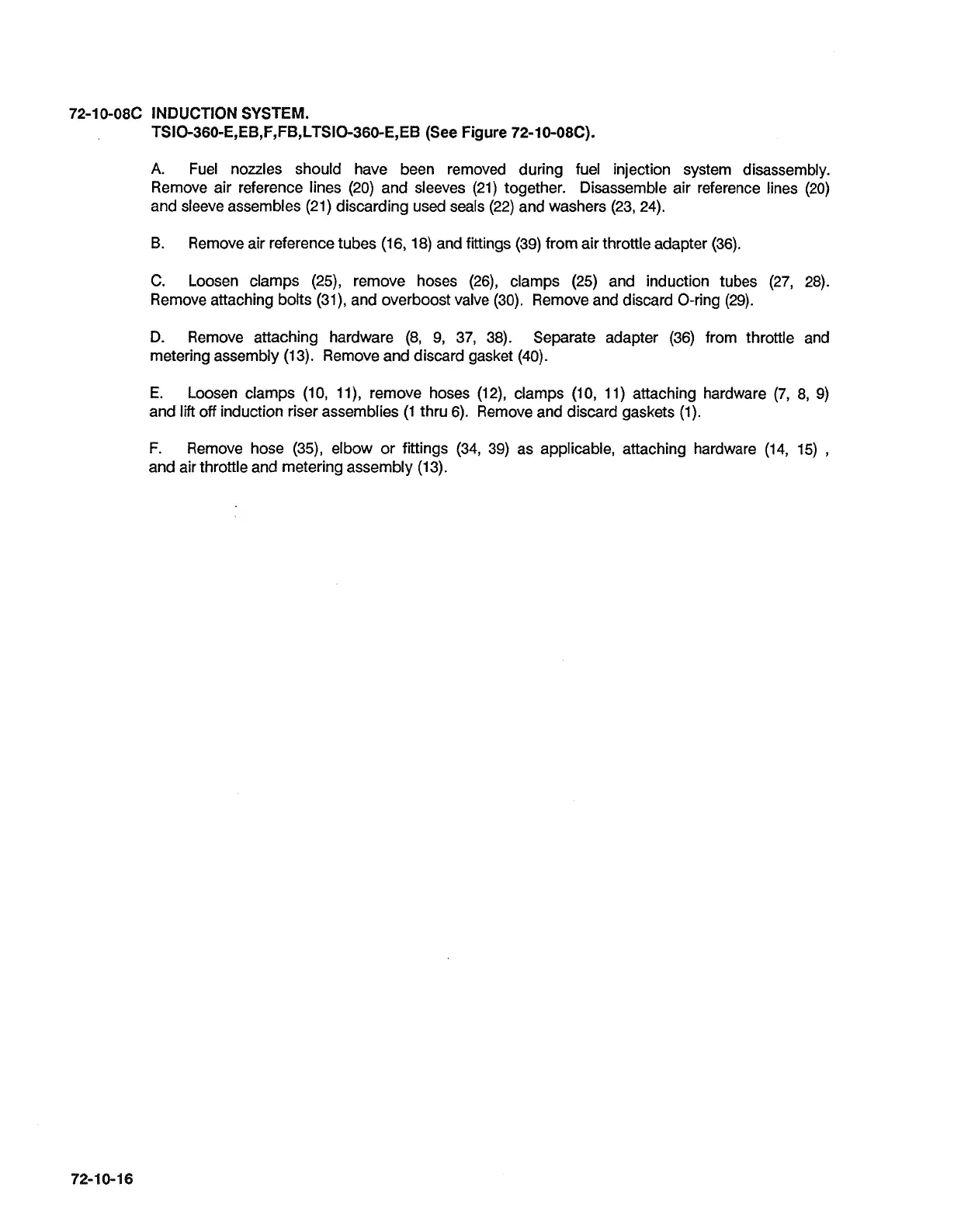

72-10-08C INDUCTION SYSTEM.
TSIO-360-E,EB,F,FB,LTSlO-360-E,EB
(See
Figure
72-10-08C).
A.
Fuel nozzles should have been removed during fuel injection system disassembly.
Remove air reference lines
(20)
and sleeves
(21)
together. Disassemble air reference lines
(20)
and sleeve assembles
(21)
discarding used seals
(22)
and washers
(23, 24).
B.
Remove air reference tubes
(16, 18)
and fittings
(39)
from air throttle adapter
(36).
C.
Loosen clamps
(25),
remove hoses
(26),
clamps
(25)
and induction tubes
(27, 28).
Remove attaching bolts
(31),
and overboost valve
(30).
Remove and discard O-ring
(29).
D. Remove attaching hardware
(8,
9, 37, 38).
Separate adapter
(36)
from throttle and
metering assembly
(13).
Remove and discard gasket
(40).
E.
Loosen clamps
(10,
1
I),
remove hoses
(12),
clamps
(10, 11)
attaching hardware
(7, 8, 9)
and lift off induction riser assemblies
(1
thru
6).
Remove and discard gaskets
(1).
F.
Remove hose
(35),
elbow or fittings
(34, 39)
as applicable, attaching hardware
(14, 15)
,
and air throttle and metering assembly
(13).
