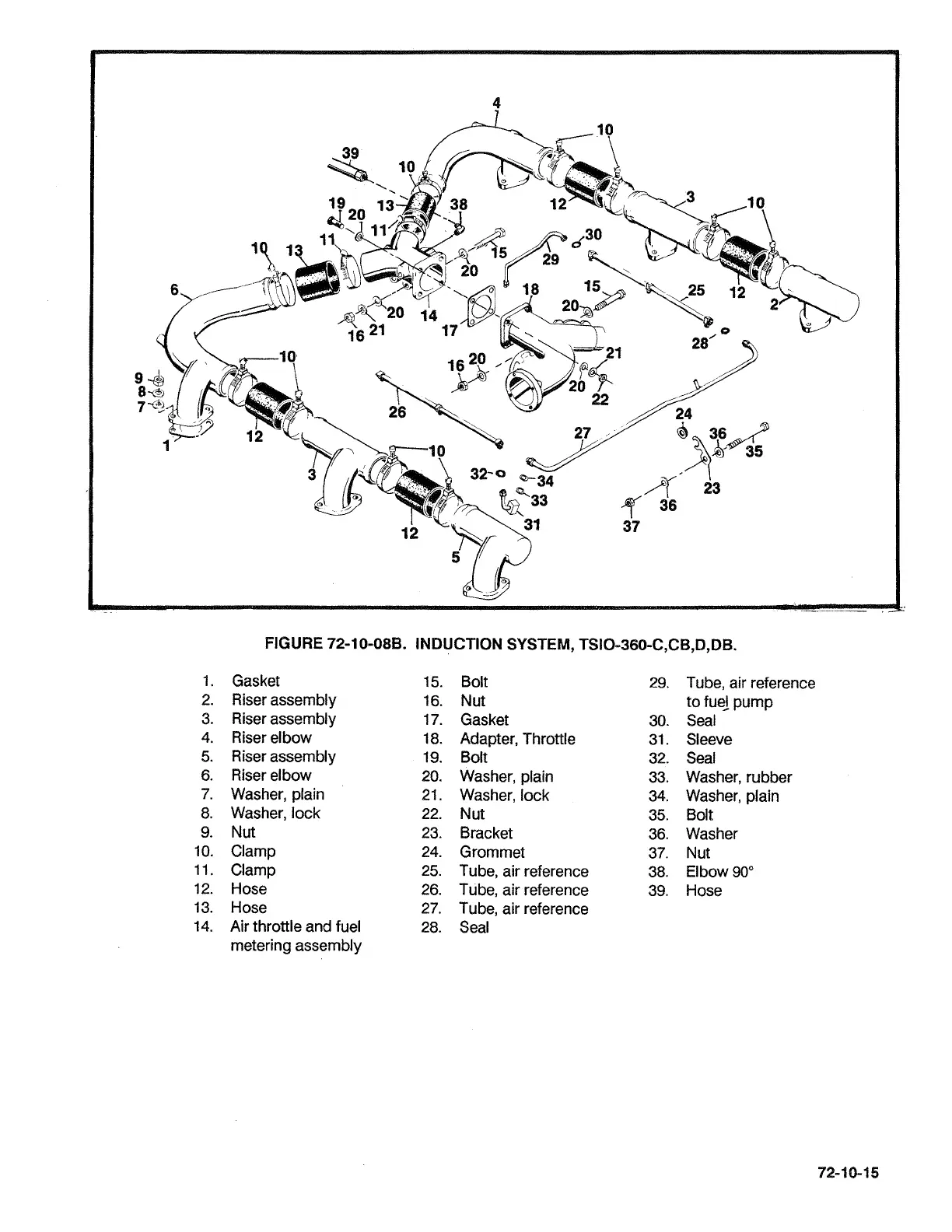

FIGURE 72-10-08B. INDUCTION SYSTEM, TSIO-360-C,CB,B,DB.
Gasket
Riser assembly
Riser assembly
Riser el bow
Riser assembly
Riser elbow
Washer, plain
Washer, lock
Nut
Clamp
Clamp
Hose
Hose
Air throttle and fuel
metering assembly
Bolt
Nut
Gasket
Adapter, Throttle
Bolt
Washer, plain
Washer, lock
Nut
Bracket
Grommet
Tube, air reference
Tube, air reference
Tube, air reference
Seal
Tube, air reference
to
fuef pump
Seal
Sleeve
Seal
Washer, rubber
Washer, plain
Bolt
Washer
Nut
El
bow 90"
Hose
