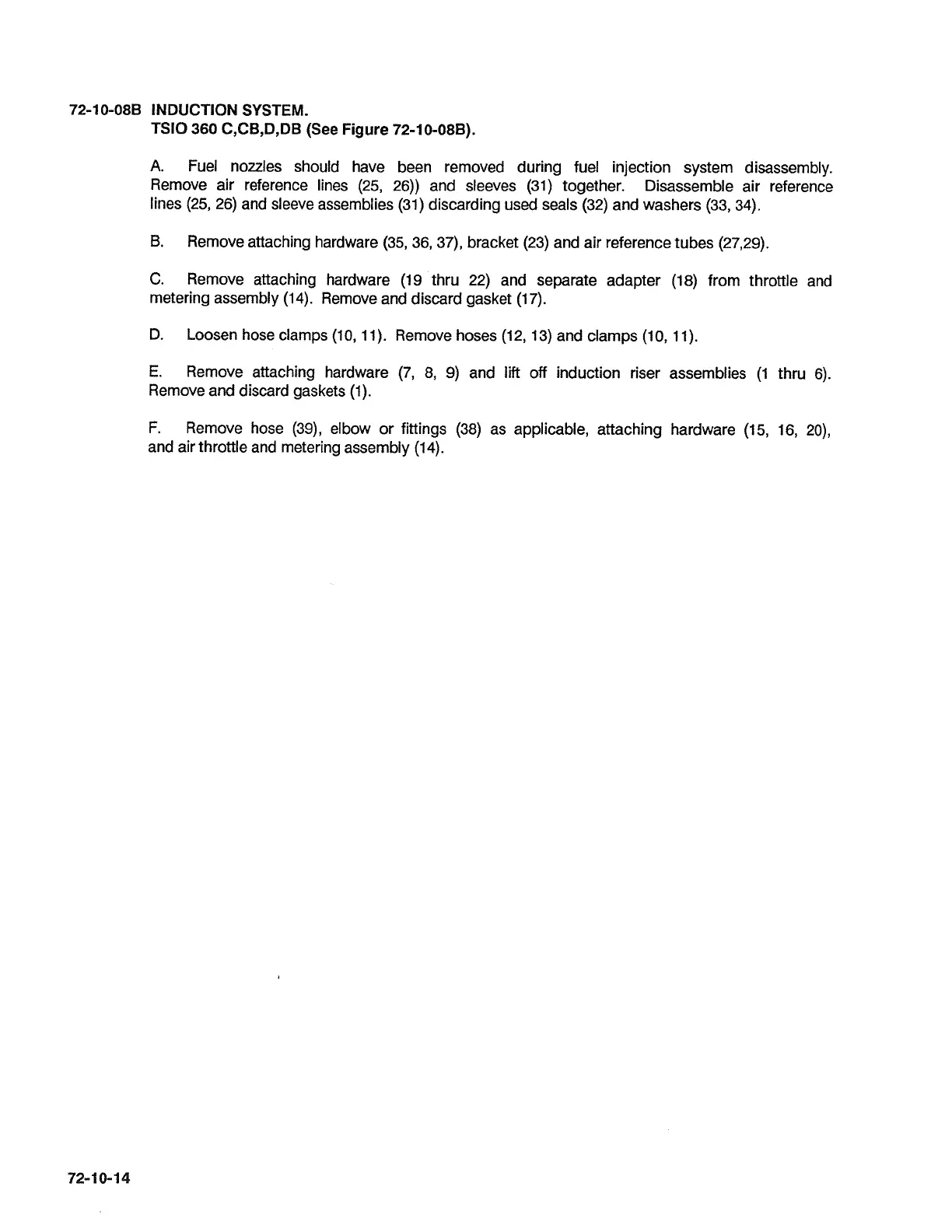

72-10-088 INDUCTION
SYSTEM.
TSlO
360
C,CB,D,DB
(See
Figure
72-10-08B).
A.
Fuel nozzles should have been removed during fuel injection system disassembly.
Remove air reference lines (25, 26)) and sleeves (31) together. Disassemble air reference
lines (25, 26) and sleeve assemblies (31) discarding used seals (32) and washers (33, 34).
B.
Remove attaching hardware (35, 36, 37), bracket (23) and air reference tubes (27,29).
C.
Remove attaching hardware (19 thru 22) and separate adapter (18) from throttle and
metering assembly (14). Remove and discard gasket (17).
D. Loosen hose clamps
(10,11). Remove hoses (12,
13)
and clamps (1 0,11).
E.
Remove attaching hardware (7, 8, 9) and lift off induction riser assemblies (1 thru 6).
Remove and discard gaskets (1).
F.
Remove hose (39), elbow or fittings (38) as applicable, attaching hardware (15, 16, 20),
and air throttle and metering assembly (14).
