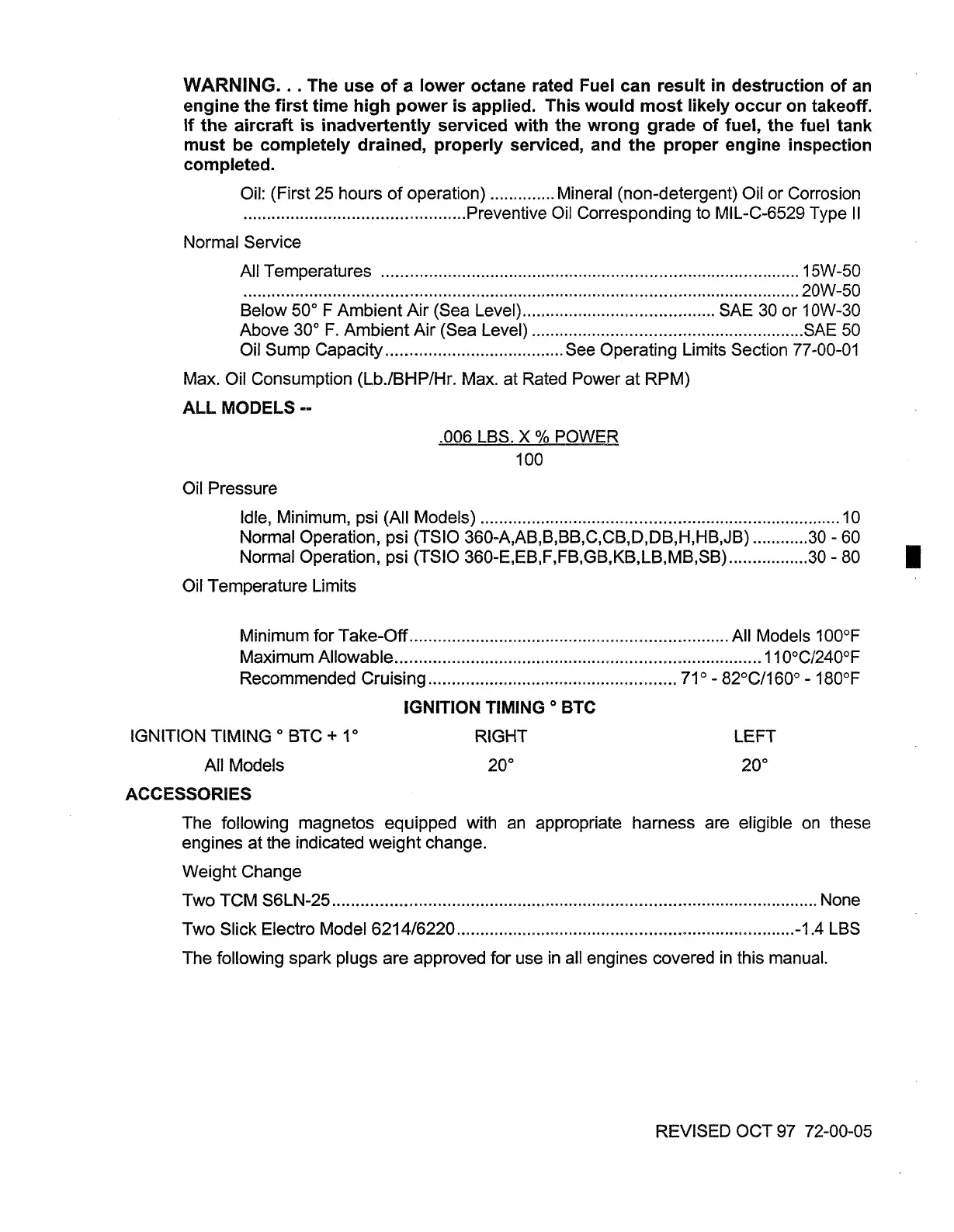

WARNING. .. The use of a lower octane rated Fuel can result in destruction of an
engine the first time high power is applied. This would most likely occur on takeoff.
If the aircraft is inadvertently serviced with the wrong grade of fuel, the fuel tank
must be completely drained, properly serviced, and the proper engine inspection
completed.
Oil: (First 25 hours of operation) .............. Mineral (non-detergent) Oil or Corrosion
............................................... Preventive Oil Corresponding to MIL-C-6529 Type II
Normal Service
All Temperatures
......................................................................................... 15W-50
......................................................................................................................
2OW-50
Below 50" F Ambient Air (Sea Level) .................................. SAE 30 or 10W-30
Above 30" F. Ambient Air (Sea Level) ........................................................ A 50
Oil Sump Capacity
...................................... See Operating Limits Section 77-00-01
Max. Oil Consumption
(Lb-lBHP/Hr. Max. at Rated Power at RPM)
ALL MODELS --
.006 LBS. X % POWER
100
Oil Pressure
Idle, Minimum, psi (All Models)
............................................................................. 10
............
Normal Operation, psi (TSIO 360-A,AB,B,BB,C,CB,B,BB,H,HB,JB) 30 - 60
.................
Normal Operation, psi (TSIO 360-E,EB,F,FB,GB,KB,LB,MB,SB) 30 - 80 I
Oil Temperature Limits
Minimum for Take-Off
.................................................................... All Models 100°F
Maximum Allowable
.............................................................................. 1 I 0°C/2400F
Recommended Cruising ..................................................... 71 O - 82OC/1 60" - 180°F
IGNITION TIMING " BTC
IGNITION TIMING " BTC + 1" RIGHT LEFT
All Models
20" 20"
ACCESSORIES
The following magnetos equipped with an appropriate harness are eligible on these
engines at the indicated weight change.
Weight Change
Two TCM
S6LN-25 ....................................................................................................... None
Two Slick Electro Model 621416220
.................................................................... -1.4 LBS
The following spark plugs are approved for use in
all engines covered in this manual.
