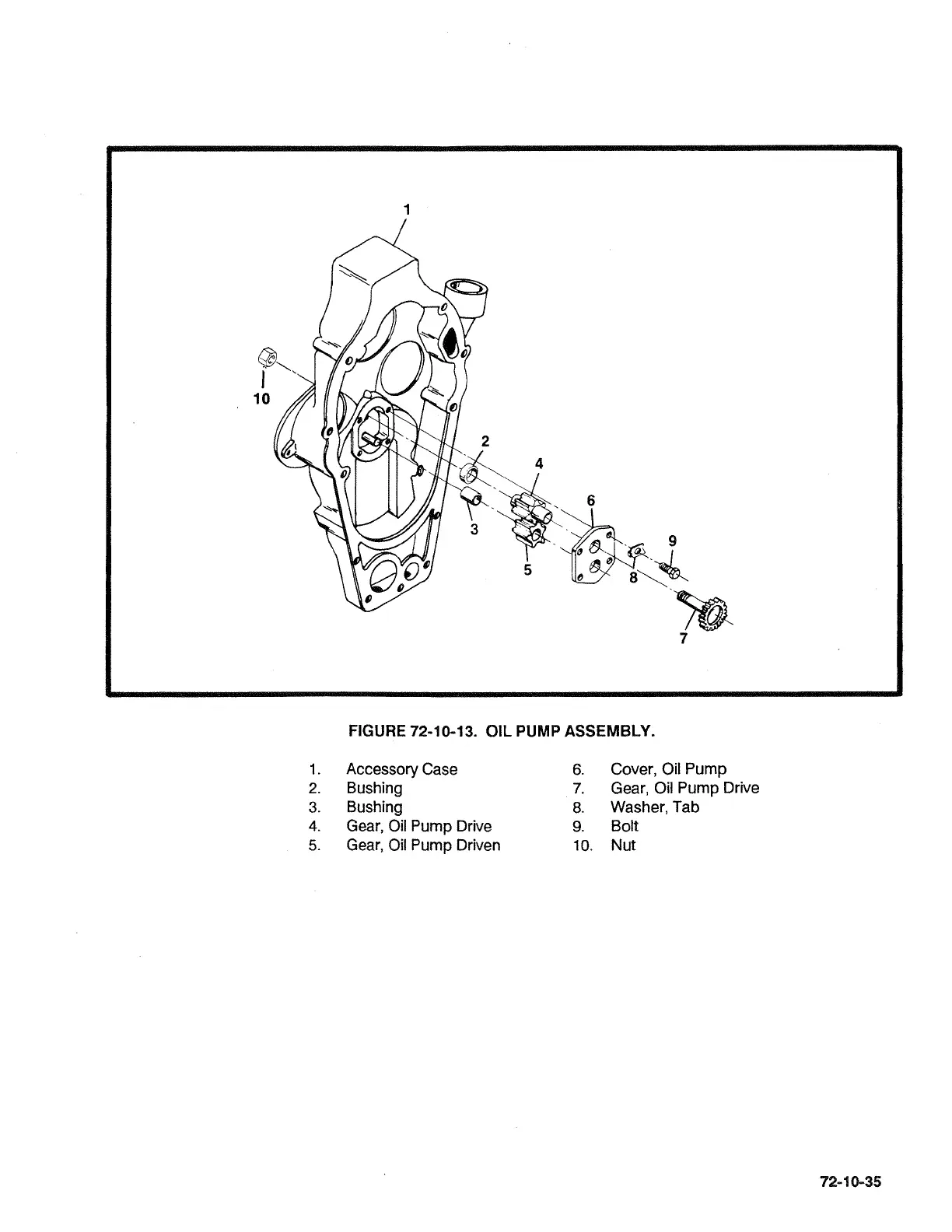

FIGURE
72-10-13.
OIL
PUMP ASSEMBLY.
1.
Accessory Case
6.
Cover,
Oil
Pump
2.
Bushing
7.
Gear,
Oil
Pump Drive
3.
Bushing
8.
Washer, Tab
4.
Gear,
Oil
Pump Drive
9.
Bolt
5.
Gear,
Qil
Pump Driven
10.
Nut
