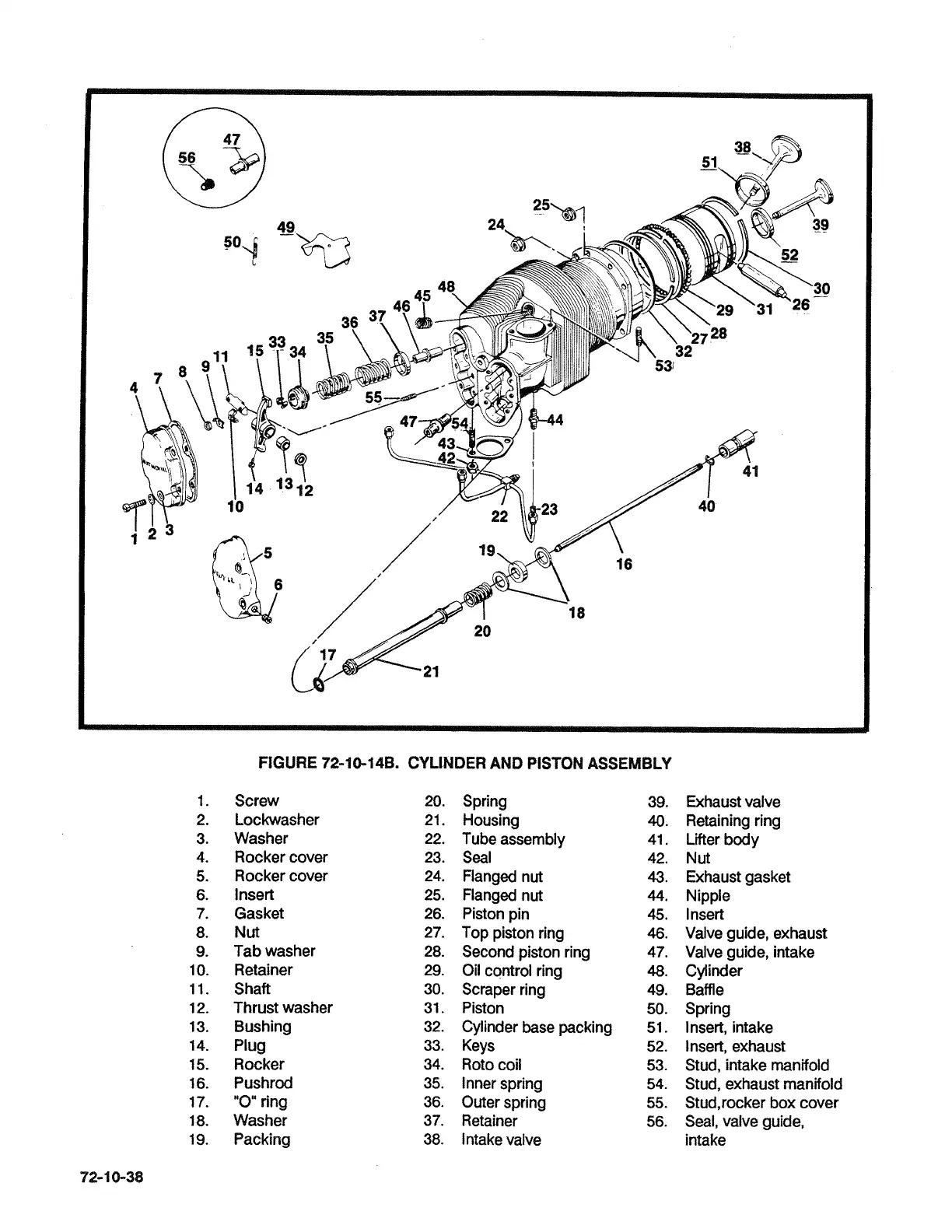

FIGURE 72-10-148, CYLINDER AND PISTON ASSEMBLY
Screw
Lockwasher
Washer
Rocker cover
Rocker cover
Insert
Gasket
Nut
Tab washer
Retainer
Shaft
Thrust washer
Bushing
Plug
Rocker
Pushrod
"0" ring
Washer
Packing
Spring 39.
Housing
40.
Tube assembly 41.
Seal 42.
Flanged nut
43.
Flanged nut 44.
Piston pin 45.
Top piston ring
46.
Second piston ring 47.
Oil control ring
48.
Scraper ring 49.
Piston 50.
Cylinder base packing 51.
Keys 52.
Roto coil 53.
Inner spring 54.
Outer spring 55.
Retainer
56.
Intake valve
Exhaust valve
Retaining ring
Lier body
Nut
Exhaust gasket
Nipple
l nsert
Valve guide, exhaust
Valve guide, intake
Cylinder
Baffle
Spring
Insert, intake
Insert, exhaust
Stud, intake manifold
Stud, exhaust manifold
Stud,rocker box cover
Seal, valve guide,
intake
