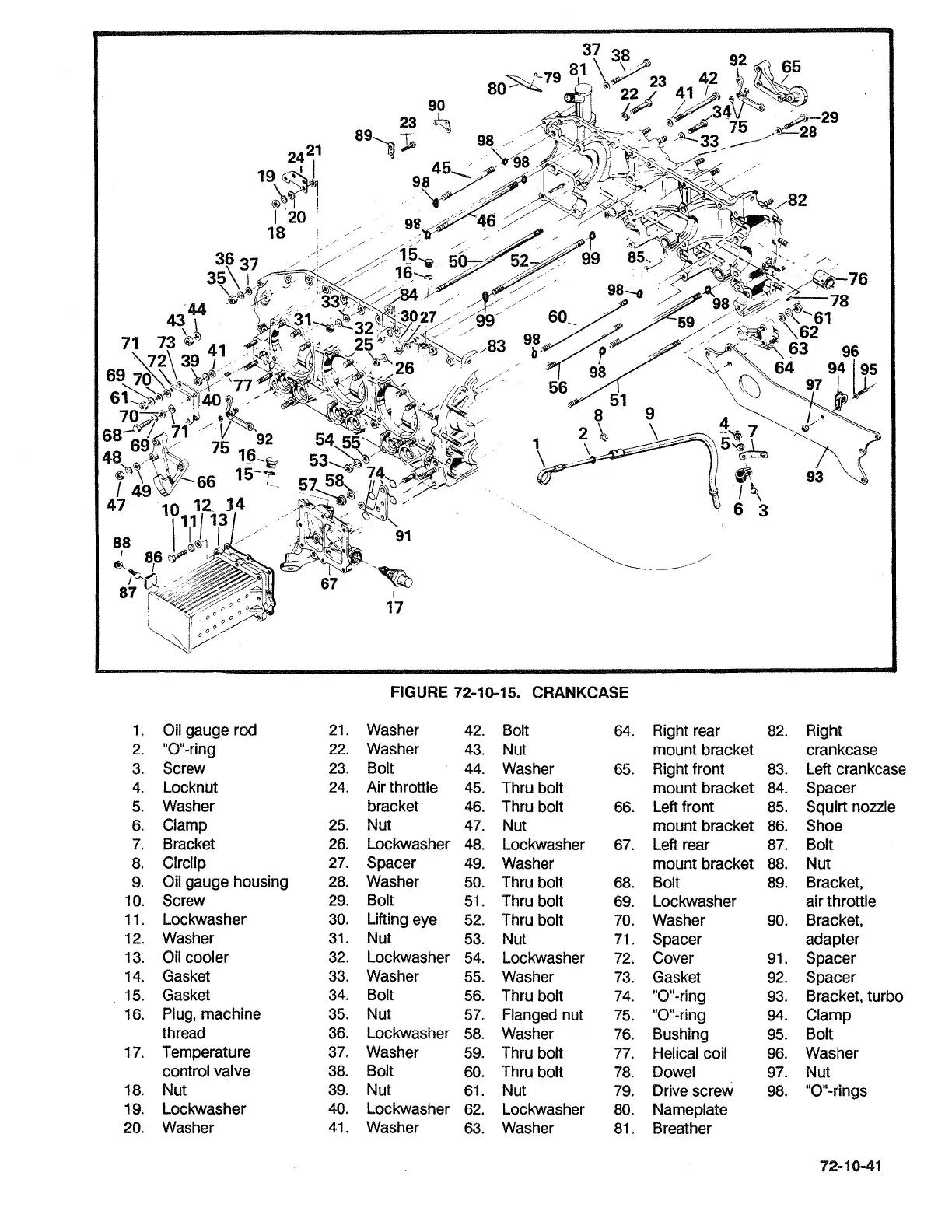

FIGURE 72-18-15. CRANKCASE
Oil gauge rod
"0"-ring
Screw
Locknut
Washer
Clamp
Bracket
Circlip
Oil gauge housing
Screw
Lockwasher
Washer
Oil cooler
Gasket
Gasket
Plug, machine
thread
Temperature
control valve
Nut
Lockwasher
Washer
Washer
Washer
Bolt
Air throttle
bracket
Nut
Lockwasher
Spacer
Washer
Bolt
Lifting eye
Nut
Lockwasher
Washer
Bolt
Nut
Lockwasher
Washer
Bolt
Nut
Lockwasher
Washer
Bolt
Nut
Washer
Thru bolt
Thru bolt
Nut
Lockwas her
Washer
Thru bolt
Thru bolt
Thru bolt
Nut
Lockwasher
Washer
Thru bolt
Flanged nut
Washer
Thru bolt
Thru bolt
Nut
Lockwasher
Washer
Right rear 82.
mount bracket
Rightfront
83.
mount bracket 84.
Left front
85.
mount bracket 86.
Left rear 87.
mount bracket
88.
Bolt 89.
Lockwasher
Washer
90.
Spacer
Cover 91.
Gasket 92.
"On-ring 93.
"OM-ring
94.
Bushing 95.
Helical coil 96.
Dowel 97.
Drive screw 98.
Nameplate
Breather
Right
crankcase
Left crankcase
Spacer
Squirt
nozzle
Shoe
Bolt
Nut
Bracket,
air throttle
Bracket,
adapter
Spacer
Spacer
Bracket, turbo
Clamp
Bolt
Washer
Nut
"0"-rings
