SeaBat Sonar UI - User Manual Appendix Dual head (Master – Slave)



Step

Action

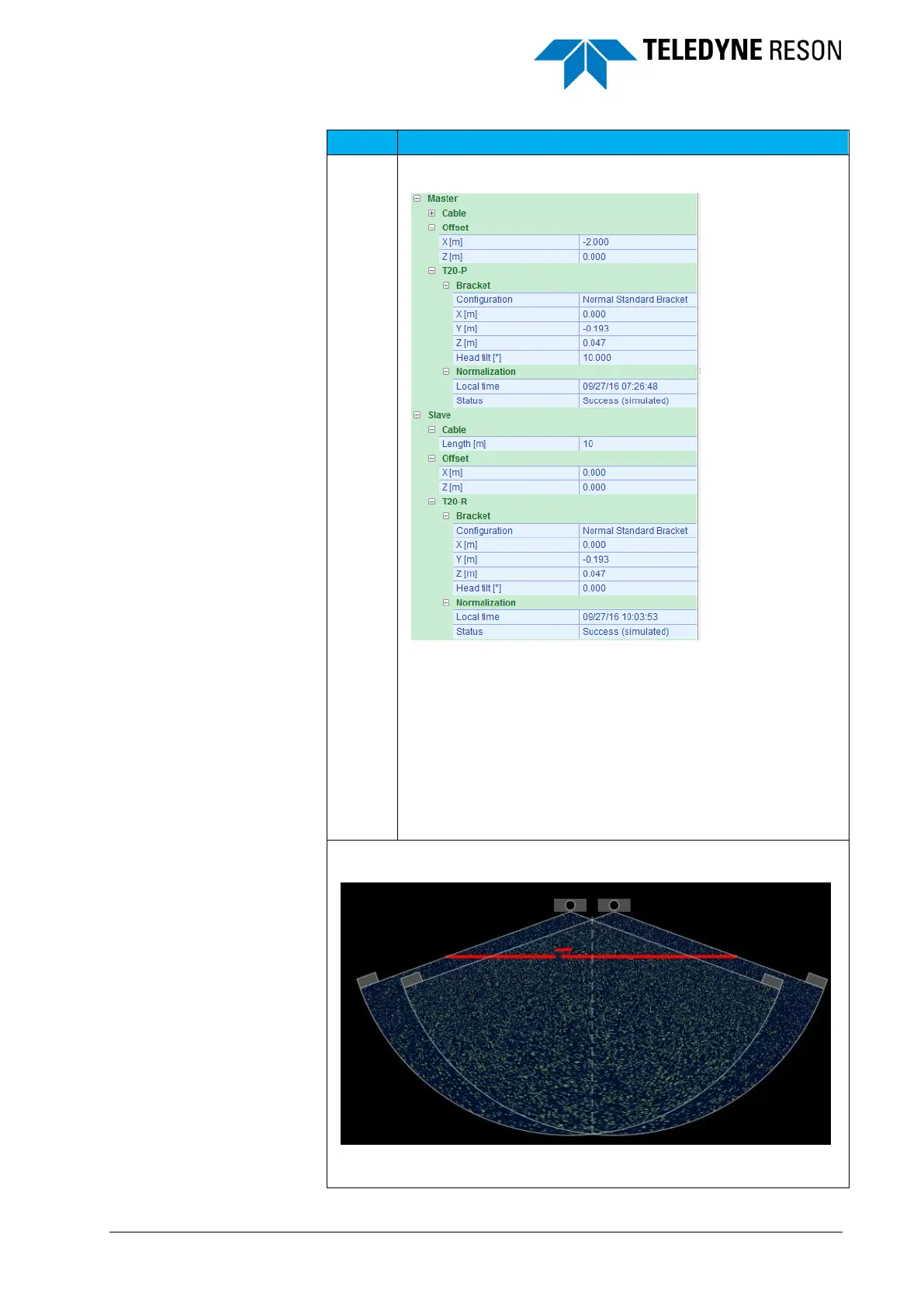

The dual head properties will extend after a successful

connection with the slave.

Enter the Master and Slave sonar offset with respect to the

vessel’s Centre Reference Point (CRP).

The offsets are from the sonars acoustic center to the CRP of

the vessel. On the moment of writing it is only for proper

indication of the wedge and therefore doesn’t need to be set

very accurate.

Enter when applicable the correct head tilt.

Two wedges appear at the master SUI. One for the Master and one for

the Slave sonar.

Hover with the cursor over the head for a Master/Slave indication text
