100



Appendix Raw Data Recording (RDR) SeaBat Sonar UI - User Manual

Step

Action

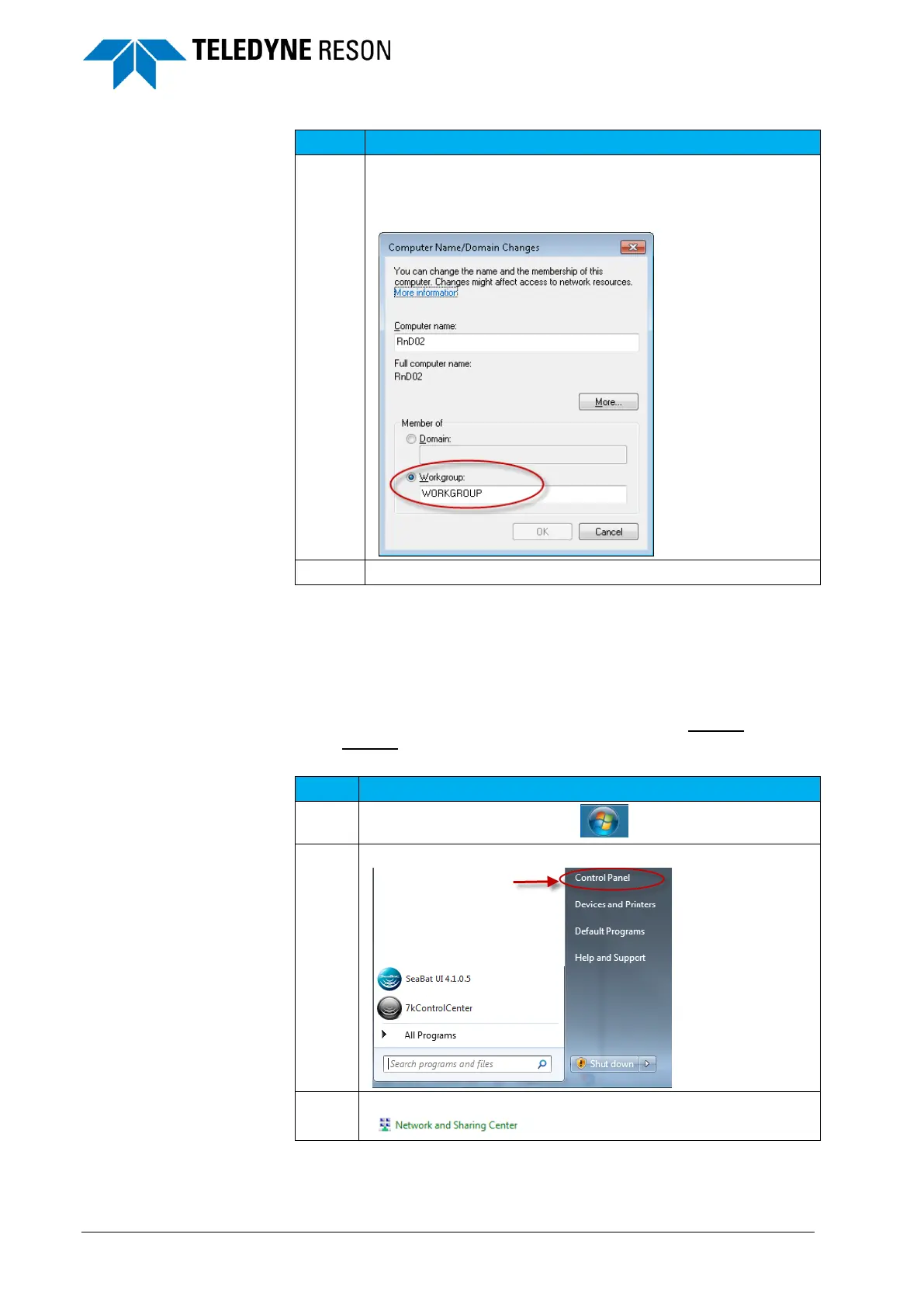

Tick the checkbox ‘workgroup’ and give the workgroup a

name. (Default Windows name is WORKGROUP, for the T20

PSP this is default RESON). The workgroup must be equal as

the other connected computers/processors.

Click ‘OK’ when finished.

7.4 Setup correct IP address and Subnet mask.

The table below summarizes the procedure to setup an IP address.and a

subnet mask. Computers/processors connected to each other must be in

the same range with a unique last digit. (E.g. Processor 10.4.0.1 and

PC1: 10.4.0.2)

Step

Action

Open the windows start menu.

Open the windows Control panel

Open the ‘Network and Sharing Center’.
