Operation SeaBat Sonar UI - User Manual
The Advanced Settings will give the sweep frequency for the pulse type
FM.
Settings can only be changed when the pulse type FM is selected in the
advanced pane.
4.9.6 Dual Head
There are two dual head configurations distinguished:
 Dual head configuration by using two sonar systems in a master /
slave setup.
 Integrated dual head system.
4.9.6.1 Dual head using two sonar systems (Master – Slave)
See Appendix ‘Dual head’ on page 87 for a description of the dual head
configuration in the SUI by using two sonar systems.

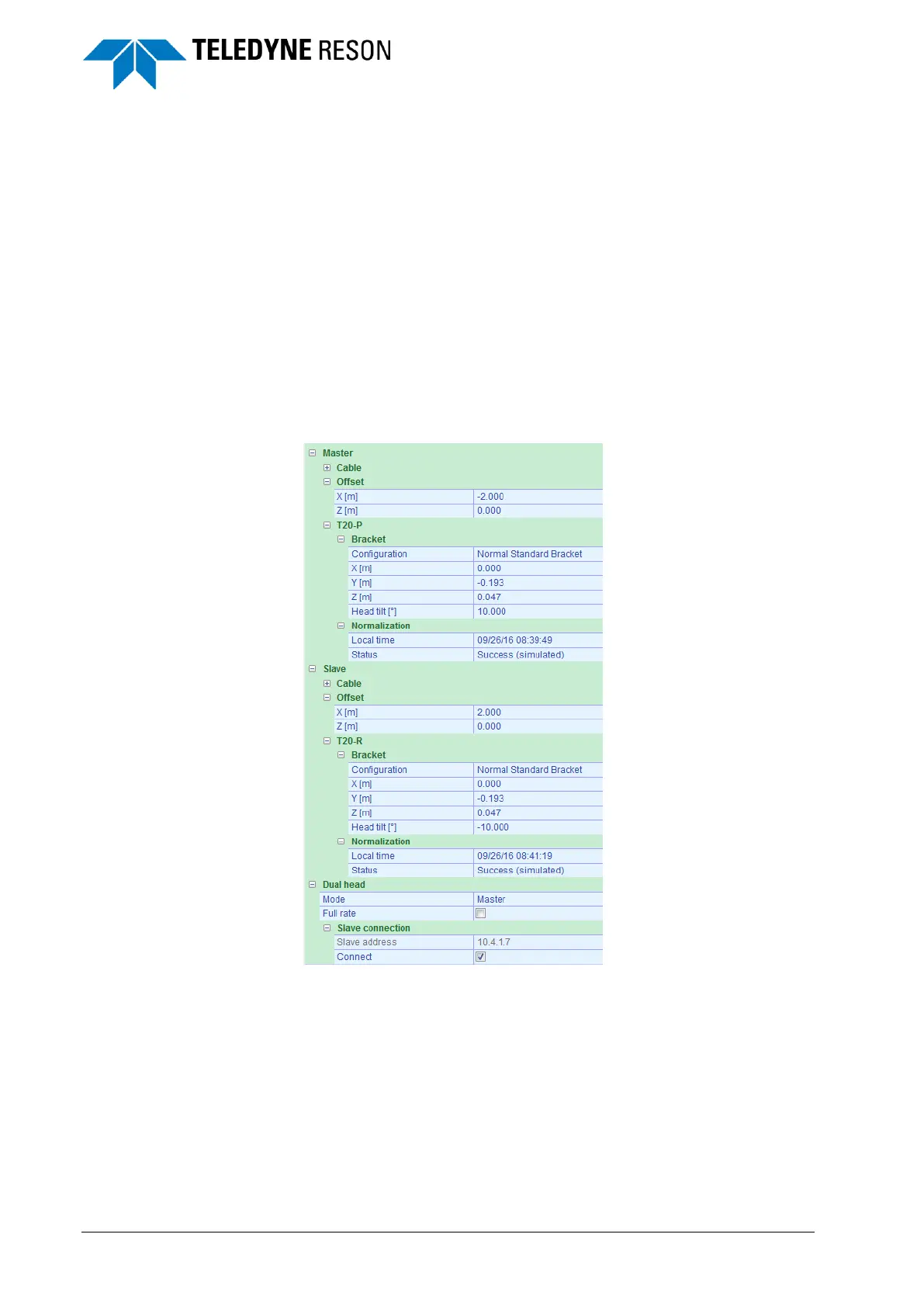

Figure 4-66 Hardware pane with dual head (Master-Slave)
In this configuration two sonar systems are used to increase the
coverage. One is designated ‘Master’ and the other ‘Slave’.
The master processor dictates when the slave sonar will cycle. Most of
the sonar settings from the ‘Master’ are mirrored on the ‘Slave’. This is
achieved through a network connection. (See Appendix ‘Dual head’ on
page 87 )
Select for the ‘Slave address’ an IP number which is in range with one of
the local area connections. Make a network connection between the two
