Operation SeaBat Sonar UI - User Manual
4.9.6.2 Integrated Dual head

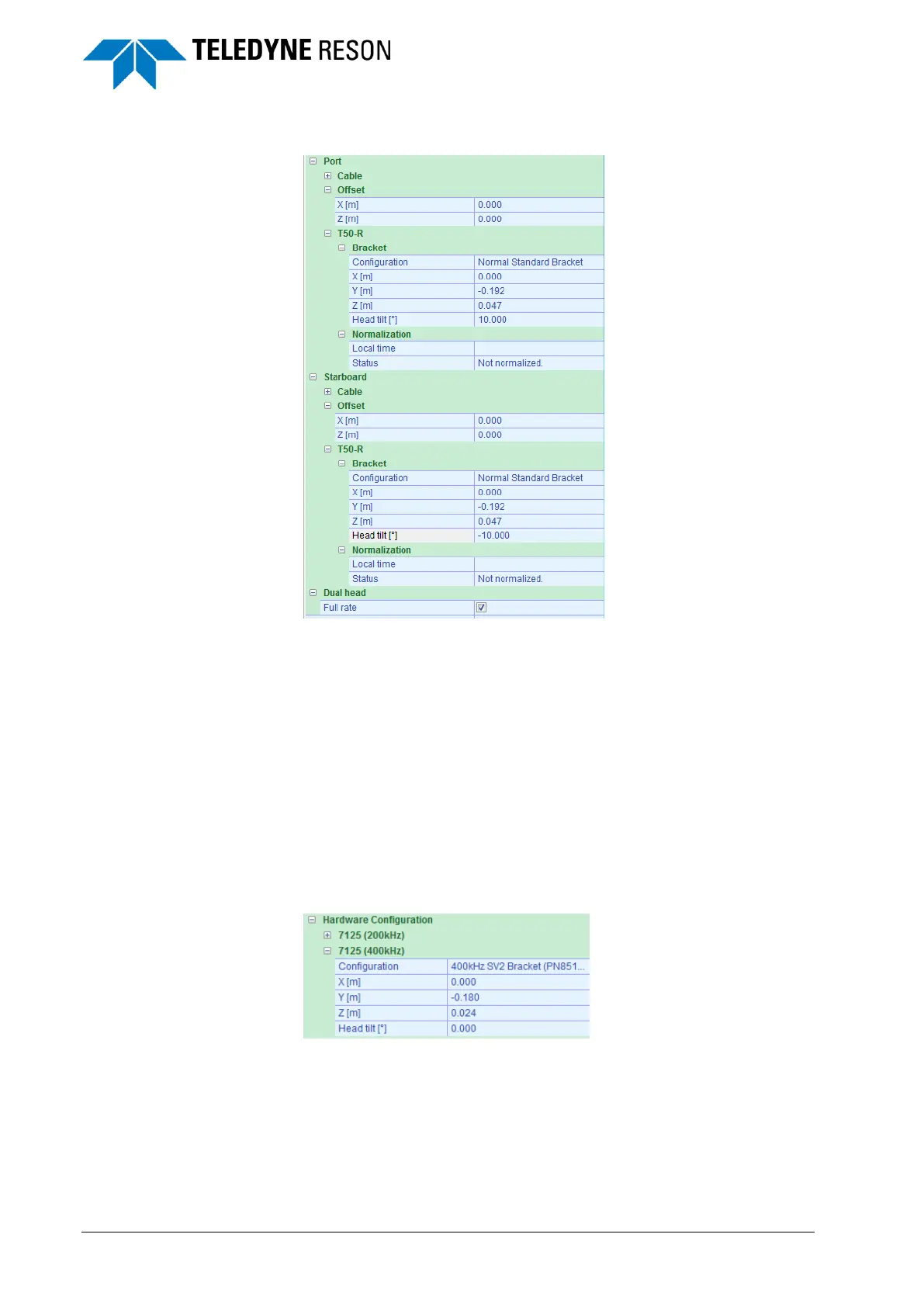

Figure 4-68 Integrated dual head properties from Harware pane
For an integrated dual head system are two sonar heads connected to a
single sonar processor.
The port and starboard X, Z offset must be entered with respect to the
vessel reference point.
In normal mode the heads ping in turn (ping-pong mode). The maximum
ping rate is half of a single head system.
Optionally the heads can ping simultaneously at full rate. This is the Full
Rate Dual Head mode (FRDH.
4.9.7 Bracket
Figure 4-69 Hardware Configuration for the active frequency
The Bracket Configuration controls the one-time transmit array and
projector offset settings. These settings should be set to reflect the initial
installation of the system and should not require a modification unless the
physical installation changes.
Select for the active frequency the right configuration.
