Operation SeaBat Sonar UI - User Manual

4.7 Display

In the Display pane the operator can customize the visual properties for

the four screens in the Operation.



Only the selected screen(s) as set in the main pane are displayed in the

display pane.

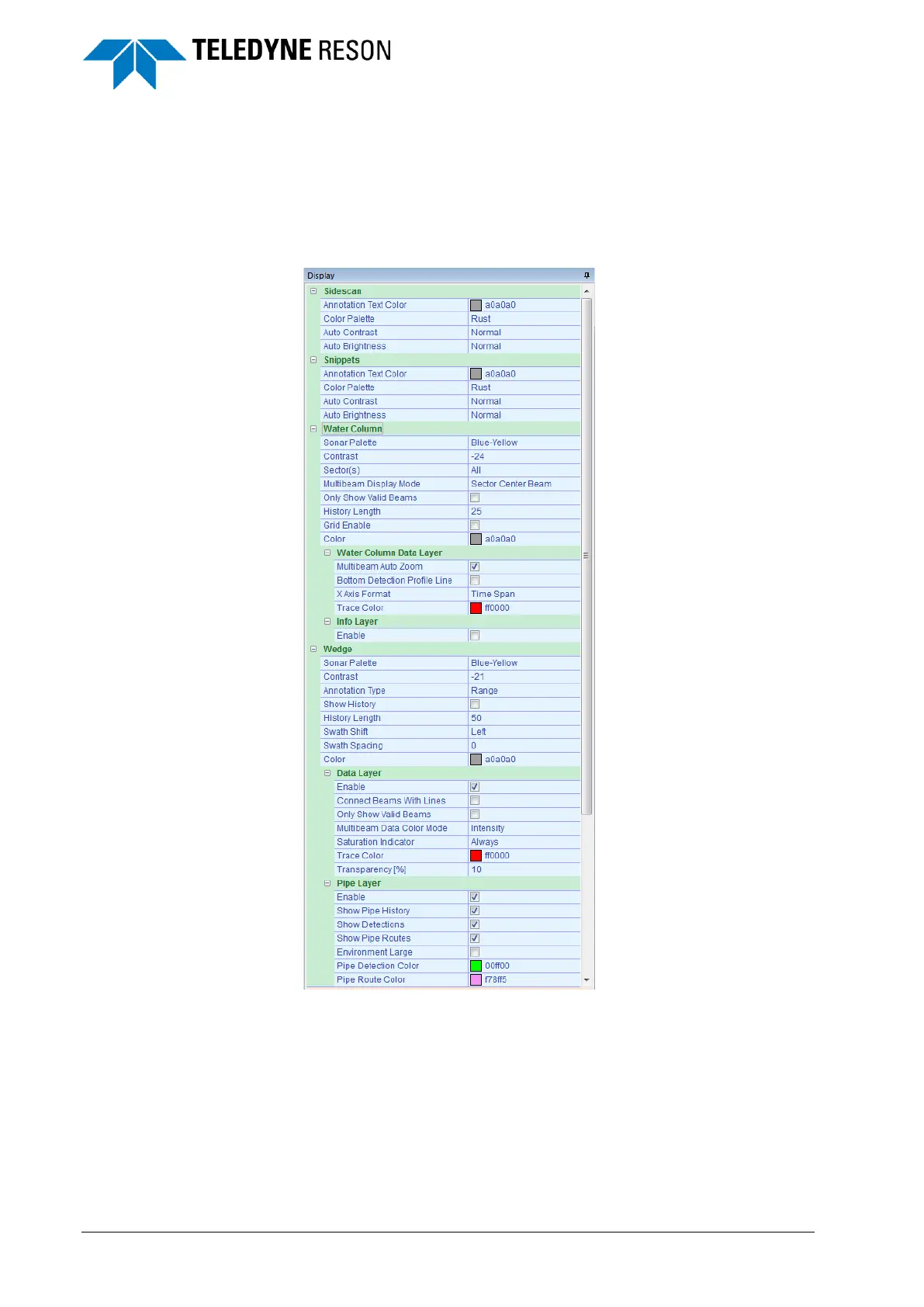

Figure 4-48 Display pane
