General Information SeaBat Sonar UI - User Manual

Re-docking settings panes:

See Figure 3-5.

1 Drag the floating settings pane to the center guide diamond.

2 When dropping the pane, it will be placed at the right side of the

display as indicated by a placeholder.

3 The settings pane will be placed above an opened bottom pane.

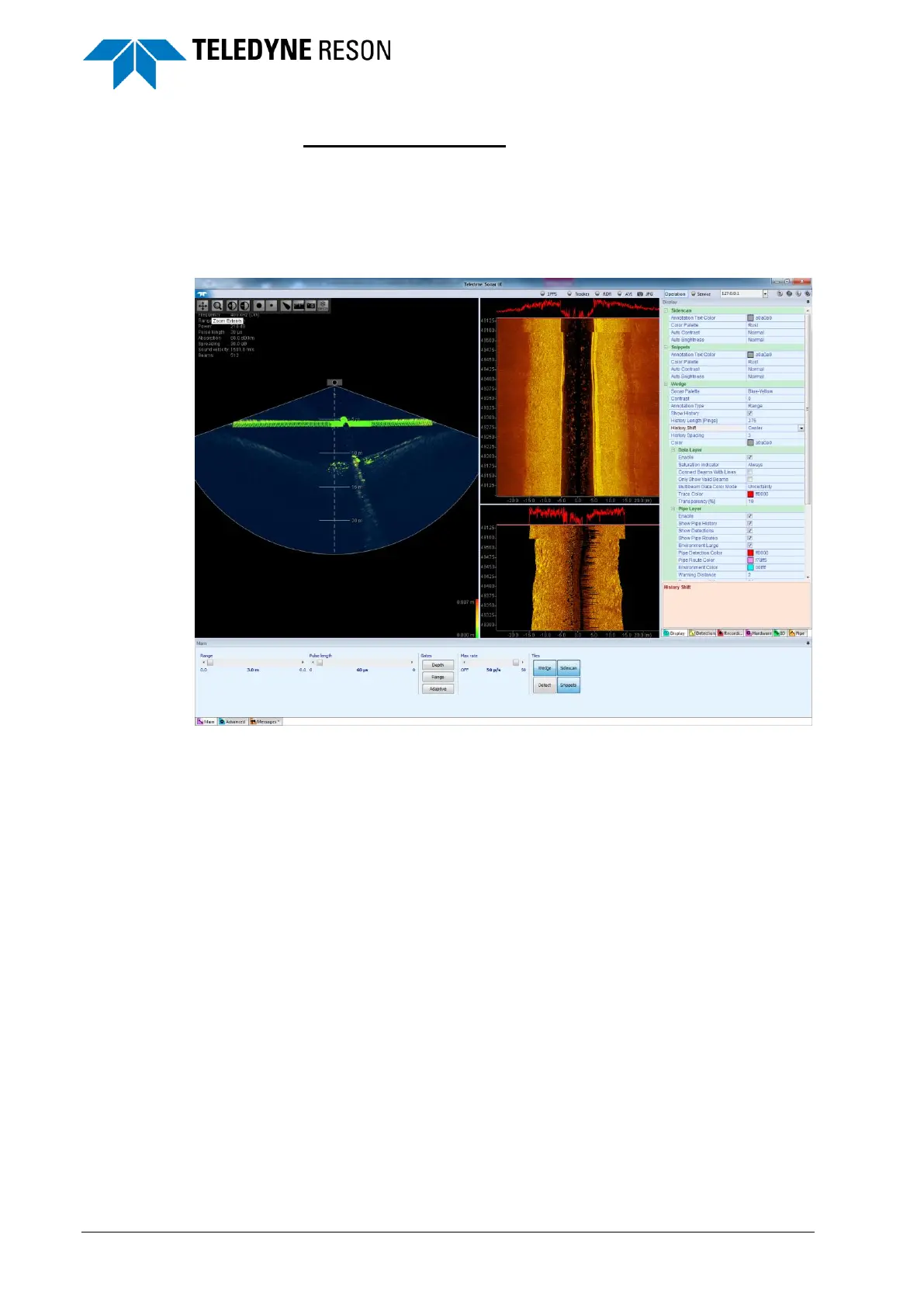

Figure 3-5 Re-dock settings pane placed above bottom pane

When dragging a settings pane to the guide diamond on the right side of

the display then:

1 The settings pane will be placed on the right side of the display.

2 An opened bottom pane will be shifted to the left.
