106



Appendix Raw Data Recording (RDR) SeaBat Sonar UI - User Manual

Step

Action

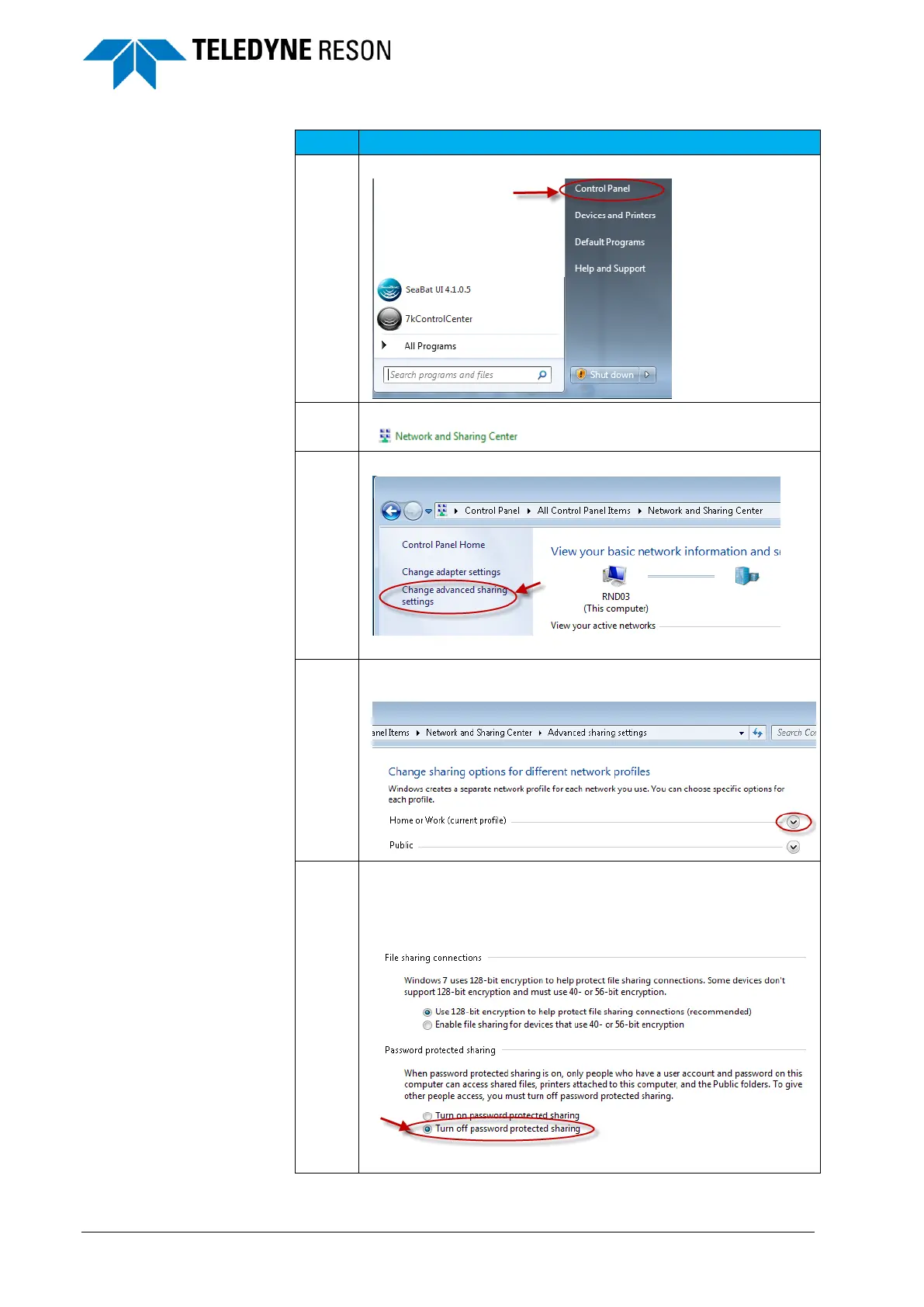

Open the windows Control panel.

Open the ‘Network and Sharing Center’.

Click ‘Change advanced sharing settings’.

Click the chevron to see the network settings. Be aware to

select the correct profile.

All kind of advanced settings are listed.

A setting which could cause problems is the ‘password

protected sharing’.

Turn this password protection off.
