Aligna
®
4D User Manual
9 / 84

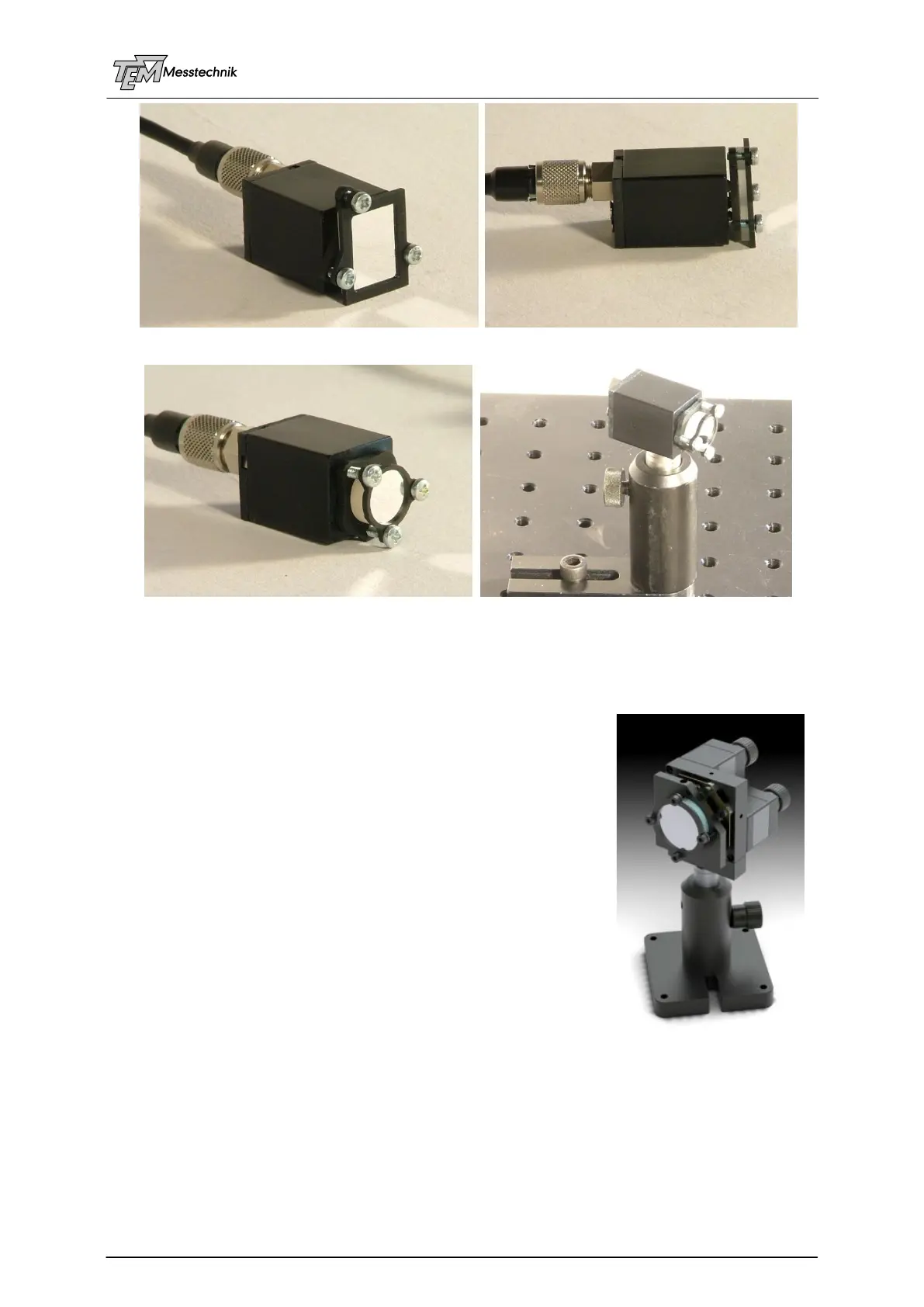

rectangular broadband mirror 15 x 20 x 2.5 mm, in rectangular corpus
Half-inch mirror, rectangular corpus
Aligna
®
also can be controlled by a PC or by other electronic
devices within a control system. In this case both the 2D beam
position and the 2D beam direction can be set by the control
system; a very precise stabilized 2D or 4D fast scanning of the
laser beam is possible.
Via the USB or serial interface, the following parameters can be
set and controlled:
Switching each servo channel on or off
control of the set points (position X, Y, and angle , )
Gain of the PSD amplifiers (sensor sensitivity)
…
For detailed information please consult the Software Manual.
In addition all relevant signals (4D position signals, 4D error signals, 4D regulation signals,…)
can be read as analog signals or via USB interface.
