Routine Maintenance and Disposal
Replacement Procedures
Aside from replacing the fuses for the AC power line and the H/S Probe spring clip,
there are no further maintenance or repair procedures that can be performed at the
institution. Please contact your Terumo Cardiovascular Technical Service representative
for any additional technical service needs.
H/S Probe Spring Clip ReplacementH/S Probe Spring Clip Replacement

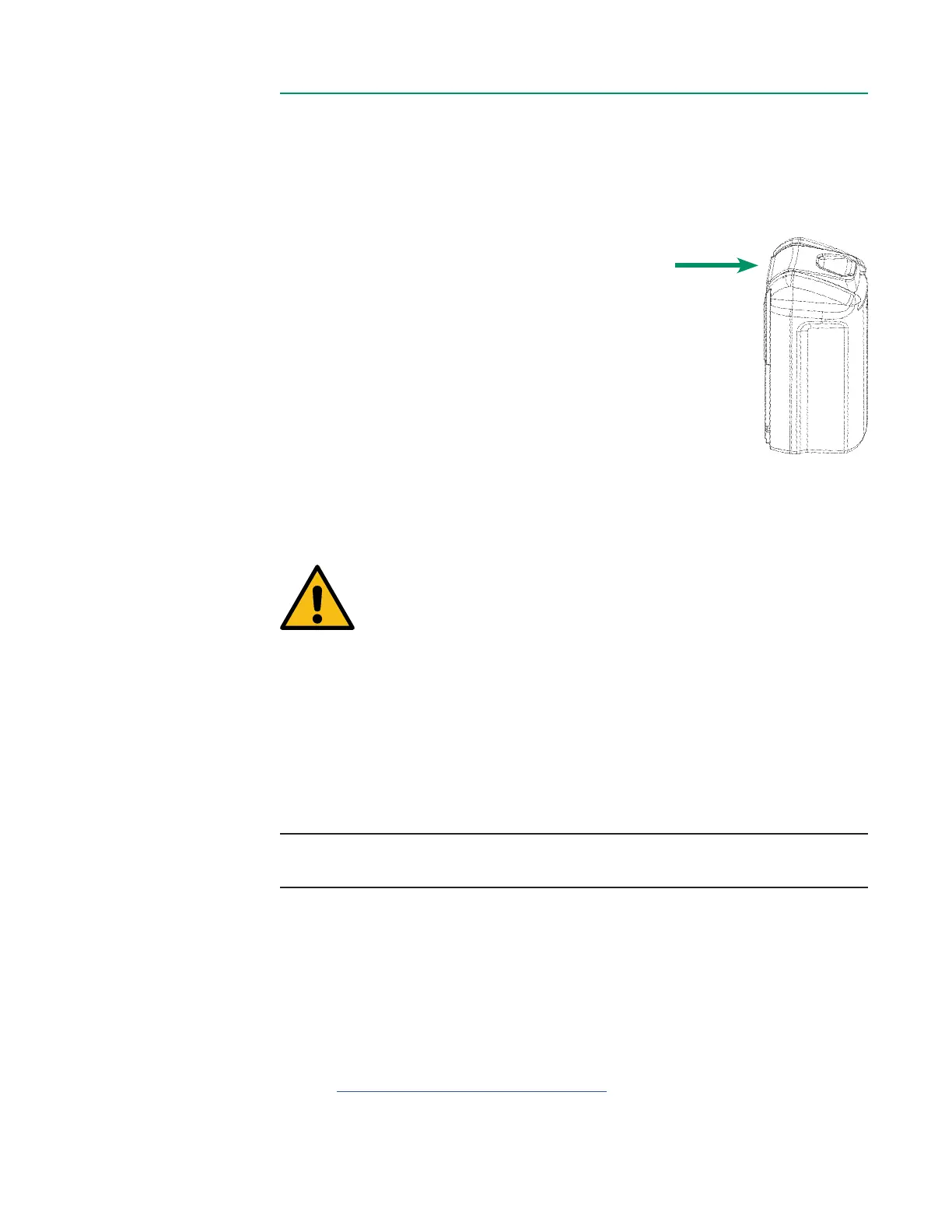

The spring clip is the contoured, dark grey piece on the top of
the H/S Probe. To replace a spring clip:
1. Hold the H/S Probe with the sensor facing towards you and
the LED indicator facing away from you.
2. With your thumb, push forward against the at side of the
spring clip until it clicks out of place, then slide the spring
clip away from you.
3. Align the new spring clip between the grooves at the top of
the H/S Probe, then slide it towards you until it clicks into
place.
Fuse ReplacementFuse Replacement
Warning
Before replacing the fuse, disconnect the Core from the wall
power source.
Replacement fuses must be the correct size and rating to protect
against the risk of re.
The CDI OneView System fuses can be replaced. To test and/or change the fuses:
1. Remove the fuse holder from the back of the Core.
2. Test the continuity of the fuse(s), checking to see if they are blown.
3. Replace the fuse(s) as needed.
The two fuses used are identical:
3.15A @250 V, Slow Acting, High Breaking Capacity (1500A), 5mm X 20mm fuses.
Make sure the fuses are correctly replaced in the Core fuse holder.
System Disposal
The CDI OneView Core, Display, Calibrator, BPM, H/S, Modules, Flow and batteries
must
be disposed of in accordance with hospital policy regarding electrical and
electronic
equipment waste.
Refer to Chapter 5, “Disposal of Waste Products” for disposal of CDI Shunt Sensors,
H/S
Cuvettes and calibration gas cylinders.
