C-3
Communication with Other Devices
Data Output Port Pin Assignments

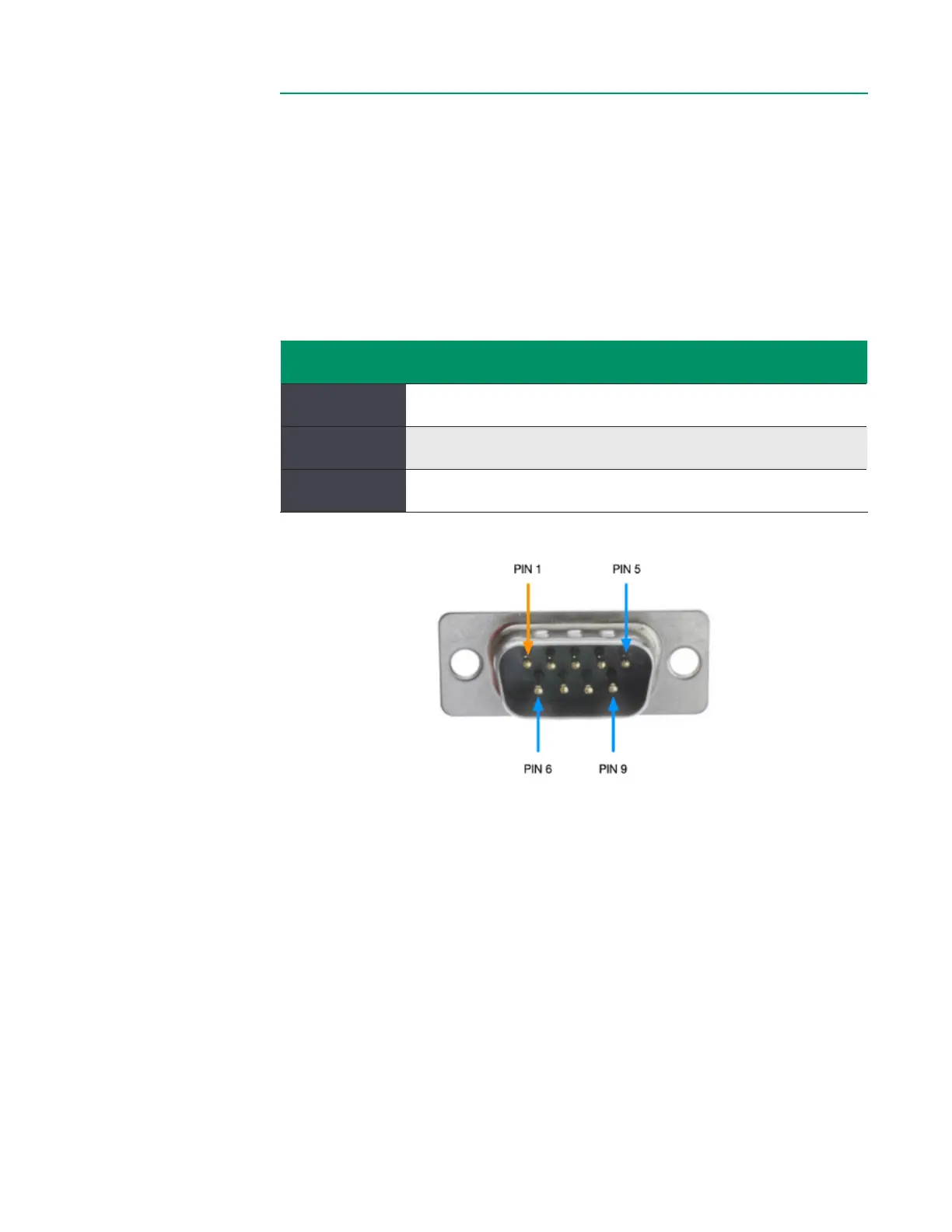

The CDI OneView Module output port is a male 9-pin D-Sub connector. This data
output port is set up as a DCE (Data Communications Equipment) device at the factory.
Hardware handshaking is not supported.
The CDI OneView Core has two levels of protection to isolate the patient from shocks
caused by AC line faults occurring in devices attached to the serial interface.
The CDI OneView’s Module serial interface follows the RS-232 standard as dened in
the following table:
Pin Number CDI OneView RS-232 Connection (DCE)
2
Receive Data Transmit Data
3
Transmit Data Receive Data
5
Ground Ground
Communication to a hospital EMR may require a middleware program such as Capsule
or Capture. Cables to connect CDI to the middleware or EMR system should be sourced
commercially or through the hospital’s Information Technology department.
In accordance with IEC 60601-1: Modules can only be connected to devices compliant
with IEC 60601-1, IEC 60950-1 or IEC 62368-1. When the CDI OneView System is being
used on a patient, do not simultaneously touch the patient and parts of nonmedical
equipment. If in doubt consult Terumo Cardiovascular Technical Support or your local
representative.
