Instruction manual for MH & MH+M
100

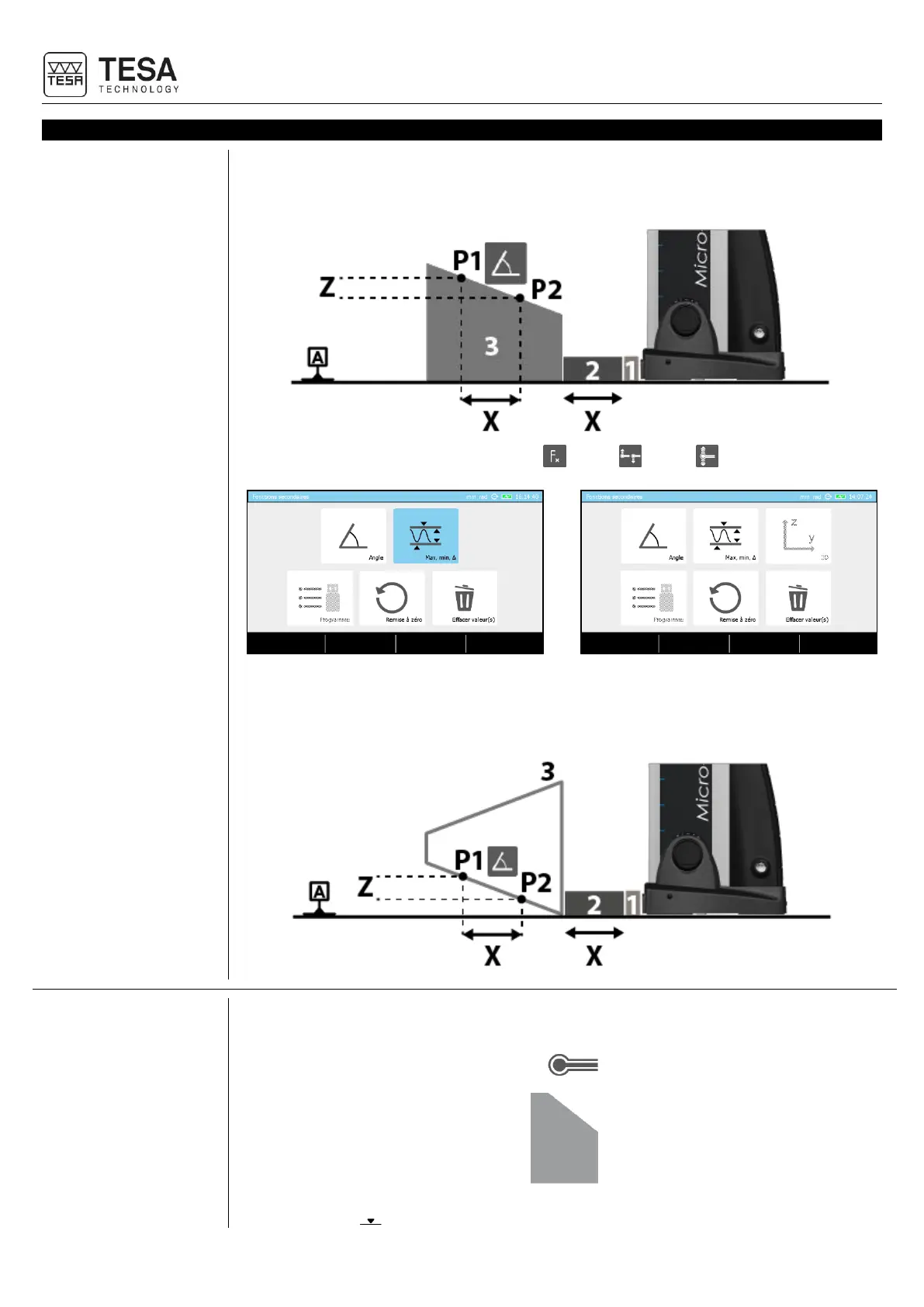

16 ANGLE MEASUREMENT
This mode allows you to measure an angle very easily and in only a few steps. It requires the
use of a standard in order to be able to determine the distance X below (the use of an
intermediate piece between the standard and the instrument is often required).
This mode is accessible by pressing the key in ST1 or ST2 measurement modes.
Additionally, this mode can also be used to determine the internal or external angle of a cone.
Of course, it is the responsibility of the user to define the way of fixing the cone to allow an
optimal measurement.
16.2 Measurement
principle (MH+M)
1. Once the measurement mode is activated, position the probe above the surface to be
measured. You will have to capture the “upper” point of the measurement.
2. Press the key . The probe will establish contact with the workpiece to be measured.
