TESA MICRO-HITE - 9.4 Bore;axis, groove;rib measurement

Instruction manual for MH & MH+M
50
9.4 Bore/axis,
groove/rib
measurement

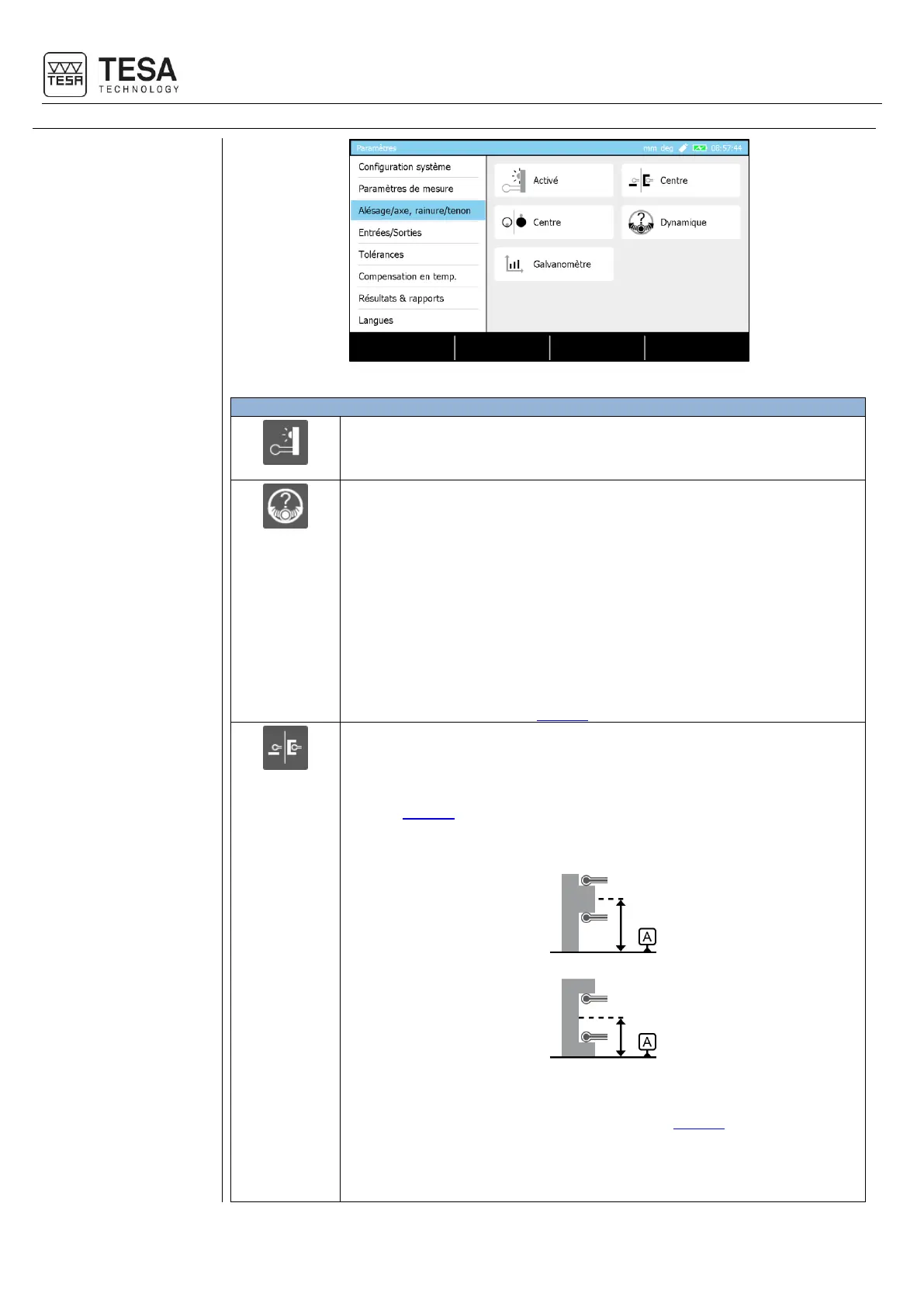

Definition of options
Managing the information LED when taking a point:
• enabled
• disabled
Definition of a culmination point detection process
• Static
a. Positioning the probe at the culmination point by moving the
workpiece
Then the workpiece is no longer moved and:
b. Height measurement of one (or two) culmination point(s) without
moving the workpiece by simple up/down probings.
• Dynamic
Culmination point (height) calculated on the fly by moving the workpiece
For further details, see this chapter.
Setting the results main value when measuring a groove / rib.
• Midpoint of an element
The main value is the midpoint of the element (for further details, see
this chapter). This value is automatically stored in a new block of the
measurement memory.
• Size/width of an element
The main value (for further details, see this chapter) is the size/width
of the element (height difference between high and low point). This
value is automatically stored in a new block of the measurement
memory.
