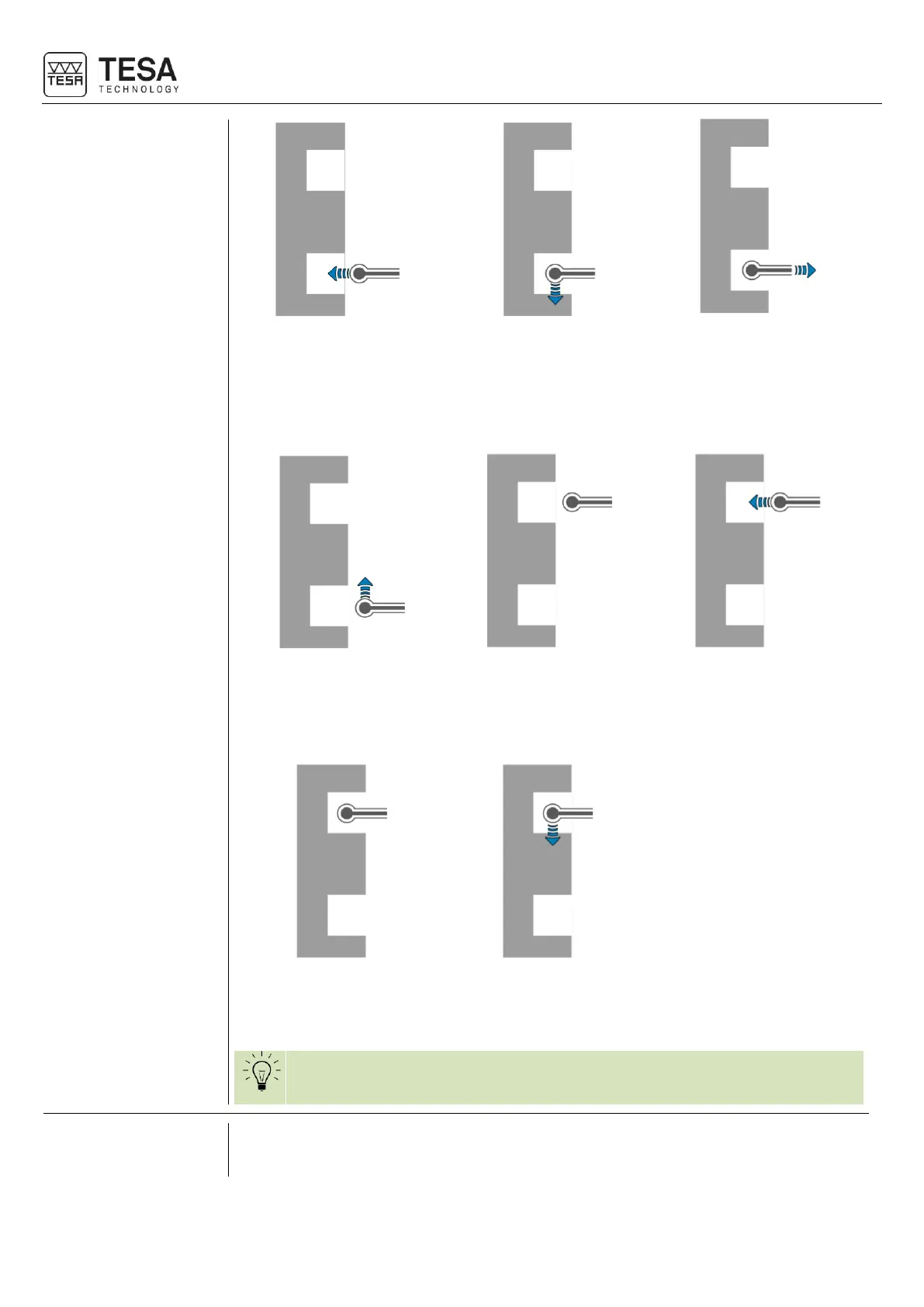

The probe is inserted into
the groove manually by
moving the part or the
instrument
2
A probe hit has the effect of
starting a countdown until
the probe will be moved to
the next measurement
zone.
3
During the countdown, the
operator has time to
withdraw the probe from
the part to avoid any
subsequent collision.
4
The countdown is finished,
the probe automatically
moves to the next
measurement zone
5
The probe has stabilised at
a height close to the
measurement, a new
countdown was started
6
During the countdown, the
user can position the probe
appropriately over the area
to be measured
7
The probe is now in a good
position, the countdown is
not finished
8
Once the countdown is at
0, the probe goes down to
measure a point
If the distance between two measurement zones (two measurement points)
is small enough, only one countdown will be used in order to save time.
Once you have run a sequence and reached the end of it, a result page is automatically
displayed.
