TESA MICRO-HITE - Connectors

Instruction manual for MH & MH+M
20
For further details on the printer installation, see this chapter. For its use, see this chapter.

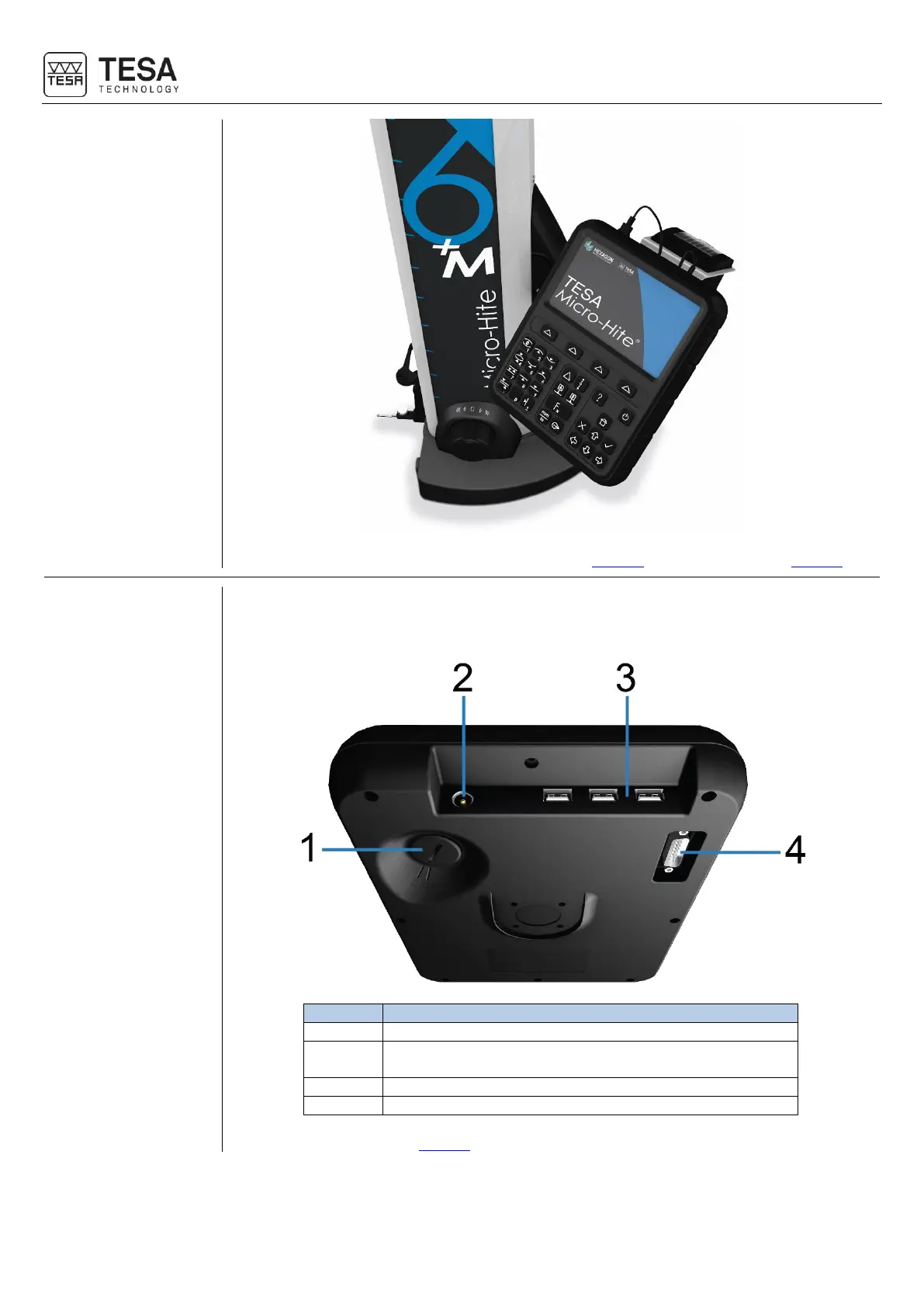

2.15 Connectors
The control panel features several connectors allowing to manage the obtained data. Besides
three USB connectors on the top of the back, there is also a TLC (TESA Link Connector) IP65
connector, which enables you to send data to an external device.
For further details, see this chapter.
No.
Description
1
TLC connector (equivalent to standard serial output)
2
Power supply (not used when the control panel is
connected to the height gauge via connector No. 4)
3
USB connectors
4
“Height gauge to control panel” connector
