TESA MICRO-HITE - Mounting a TESA USB Probe

Instruction manual for MH & MH+M
109

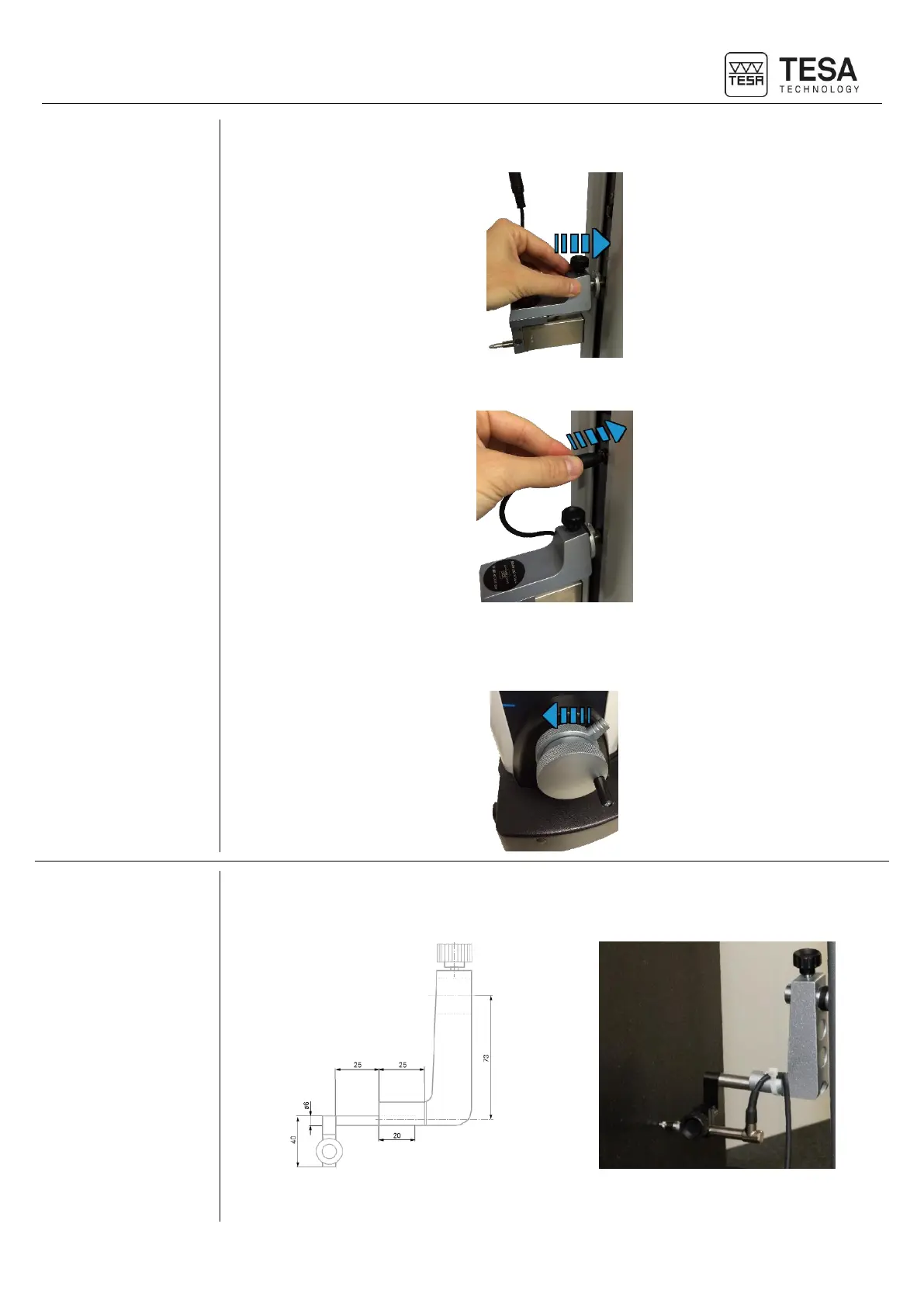

4. Mount the IG13 on its pin.
5. Connect the IG13 to the height gauge.
6. Unblock the locking ring. The IG13 is now ready to be used.
18.3 Mounting a
TESA USB probe
When using the MICRO-HITE or MICRO-HITE+M together with a TESA USB probe, it is
necessary to use a probe insert holder (TESA reference: 00760222) specifically adapted to the
diameter of the accessory.
Before starting to remove the probe and its support on a MICRO-HITE, it is highly recommended
to use the locking ring in order to avoid that the measuring carriage will be displaced upwards
