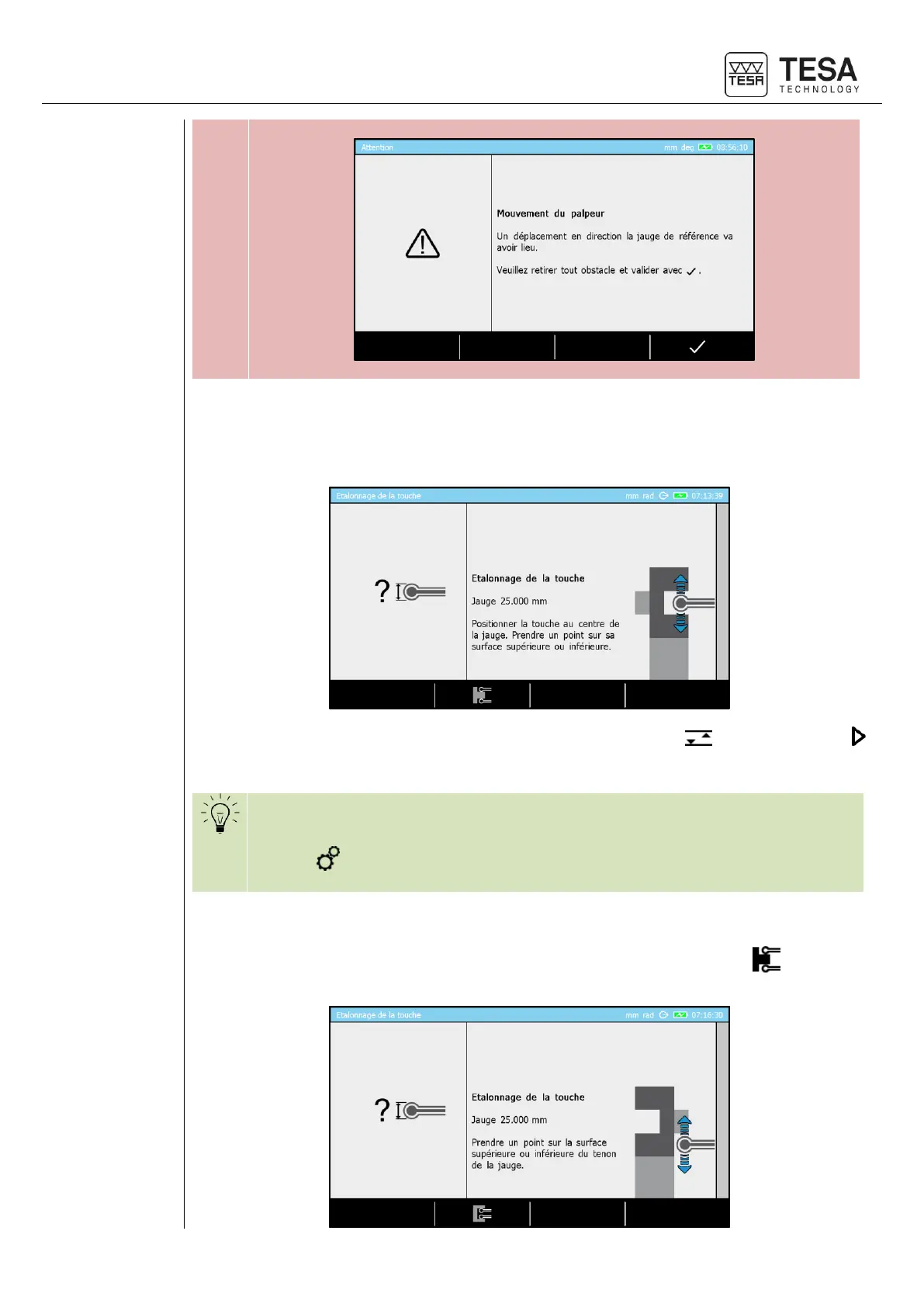

This example shows a page presenting a procedure defined for a motorised MICRO-HITE+M height
gauge. When using a manual instrument, the points have to be measured using the handwheel and
moving the probe from top to bottom.
If the instrument is motorised, the procedure can be started clicking on on the keyboard or
on the screen.
The groove measurement process is active by default. Most of the time, measurements are carried
out using a ball probe. However, if the user wants to define the probe constant by measuring the
rib of the master piece, the user first has to change the mode by pressing the key .
When using a motorised instrument, the insert is automatically positioned at the
height of the centre of the reference when the user activates the process for
determining the probe constant. This height can be configured in the system
options .
