HYDRAULICS
8D-15
ASSEMBLY
Swashblock
Position the hydrodynamic bearing in the housing so
that the pin is at the 8 o’clock position between protru-
sion and pump housing to assure CCW rotation
(Figure 8D-9).

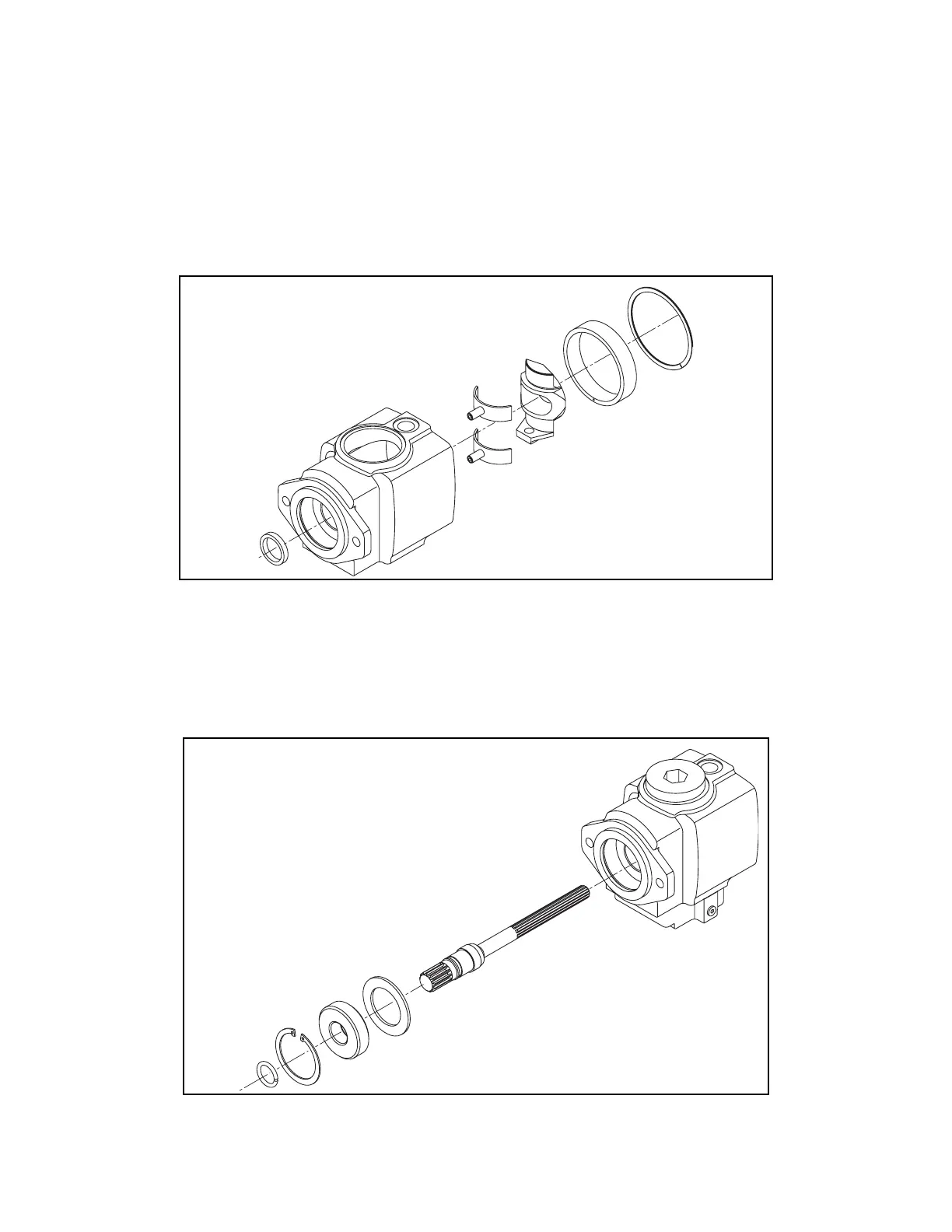

Figure 8D-9. Swashblock Group Assembly
Drive Shaft Group
NOTE:
When installing the bearing, press on the outer
face. Install with numbers on bearing to the out-
side (Figure 8D-10).
Figure 8D-10. Drive Group Assembly
Retaining
Ring
Hydrodynamic
Bearing
Swashblock
Saddle
Bearings
Main Case
Shaft Seal
(Flush with
Housing)
Shaft
Shaft
Retaining
Ring
Bearing
Retaining
Ring
Bearing
Seal
Retainer
To Next Page
