HYDRAULICS
8D-16
Rotating Group Assembly
Install the shoe retainer with the center curved surface
toward the fulcrum ball (Figure 8D-11).
NOTE:
Do not force pistons into barrel. The pistons
should fit loosely.

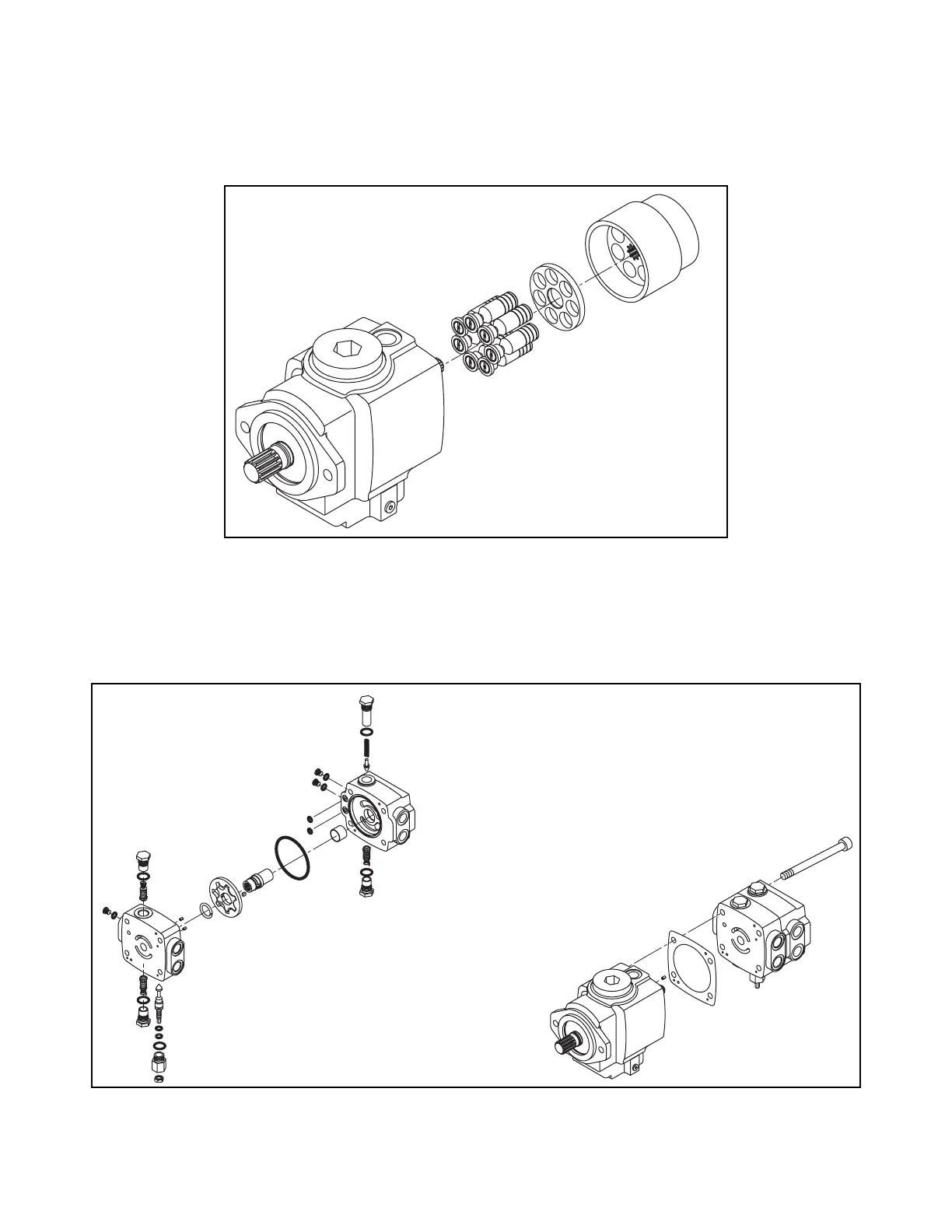

Figure 8D-11. Rotating Group Assembly
Valve Plate, Gerotor Pump, Rear Plate
Assembly
See Figure 8D-12 for valve plate, gerotor pump, and
rear plate assembly.
Figure 8D-12. Valve Plate, Gerotor Pump, and Rear Plate Assembly
Pistons
Shoe
Retainer
Cylinder
Barrel
Main Case
Assembly
