Thales 421 - Fig. 2−4 10 Ft Container Shelter, Dimensions; Fig. 2−5 10 Ft Container Shelter, Outer Details

LLZ 421
Installation Operation and Maintenance
ILS 420
2−4 Ed. 01.04SOAC
(dimensions in [mm])
2991
2438
2438
Support for A/C

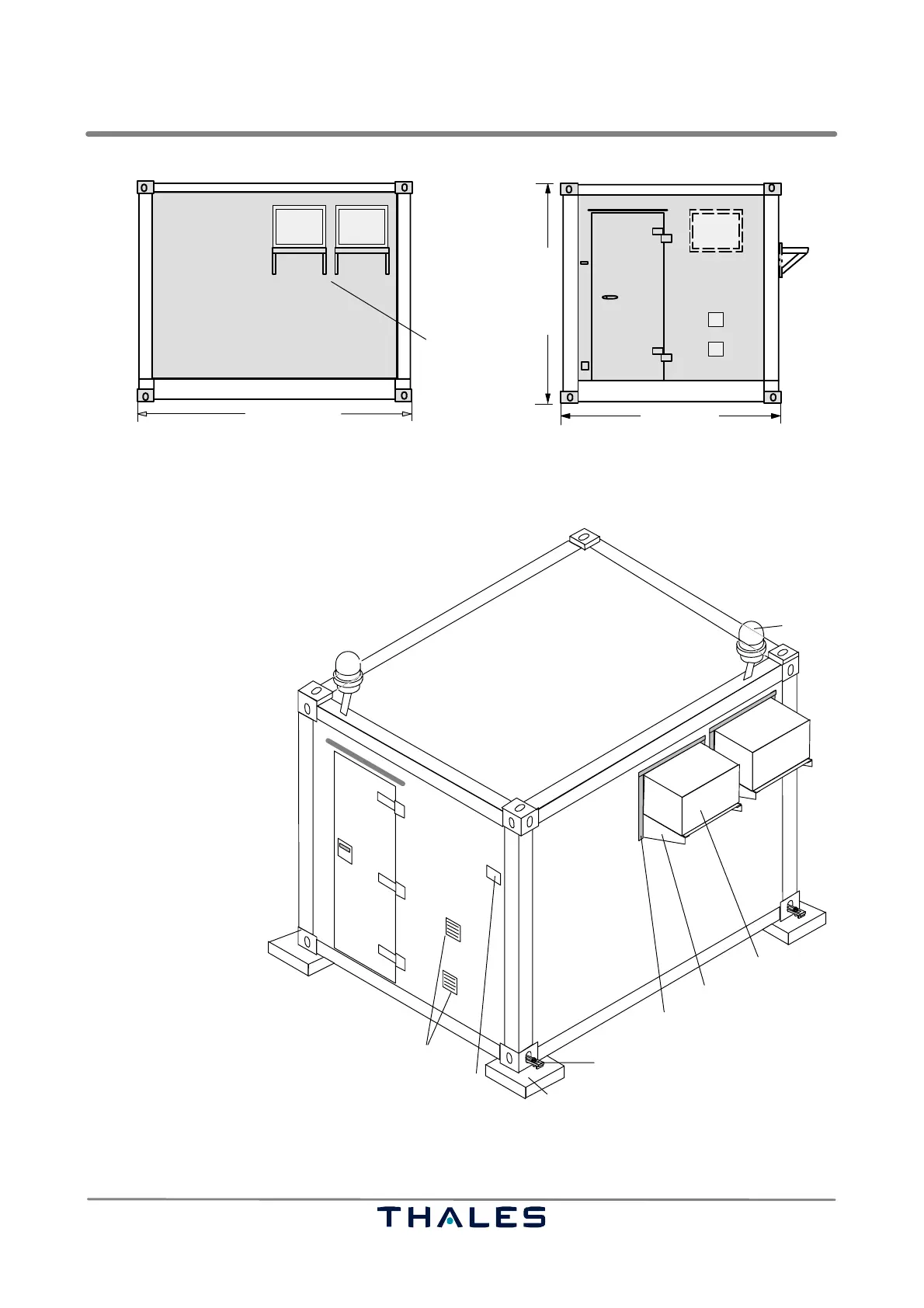

Fig. 2−4 10 ft container shelter, dimensions
1
2
3
4
7
8
1 Obstruction lights (2x)
2 air conditioner (2x)
3 Support (2x)
4 Sealing frame, complete (2x)
5 Shelter anchoring bolt
6 Concrete foundation
7 Type sign
8 Ventilation opening for battery compartment
(covered by a weather protective gating)
5
6
Fig. 2−5 10 ft container shelter, outer details
