Applied Instructions
5-2. Reading Method of Applied Instructions
nderstanding method of instruction understanding

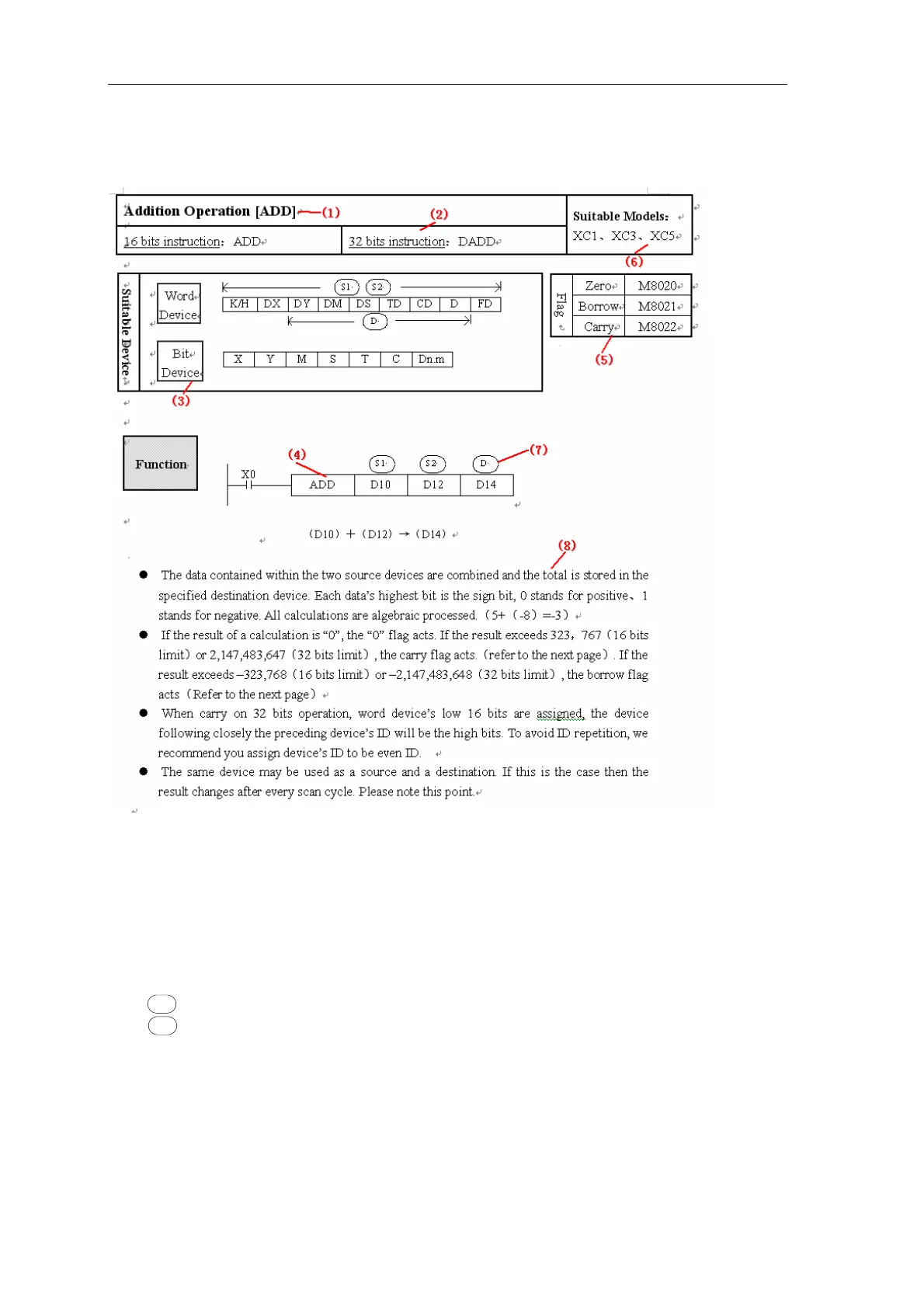

In this manual, the applied instructions are described in the following manne
U
r.
Note:
⑧ Denote the instruction name
⑨ 16 bits instruction and 32 bits instruction
⑩ Denotes the soft units which can be used as the operation object
Ladder Example
Flag after executing the instruction. Instructions without the direct flag will not display.
Suitable models for the instruction
Source operand, its content won’t change after executing the instruction
Destinate operand, its content changes with the execution of the instruction
(8) Tell the instruction’s basic action, using way, applied example, extend function, note items etc.
S·
D·
139
To Next Page
