Applied Instructions
As the instructions of executing list, with CJ instructions, the operate cycle and
dual coil can be greatly shorten.

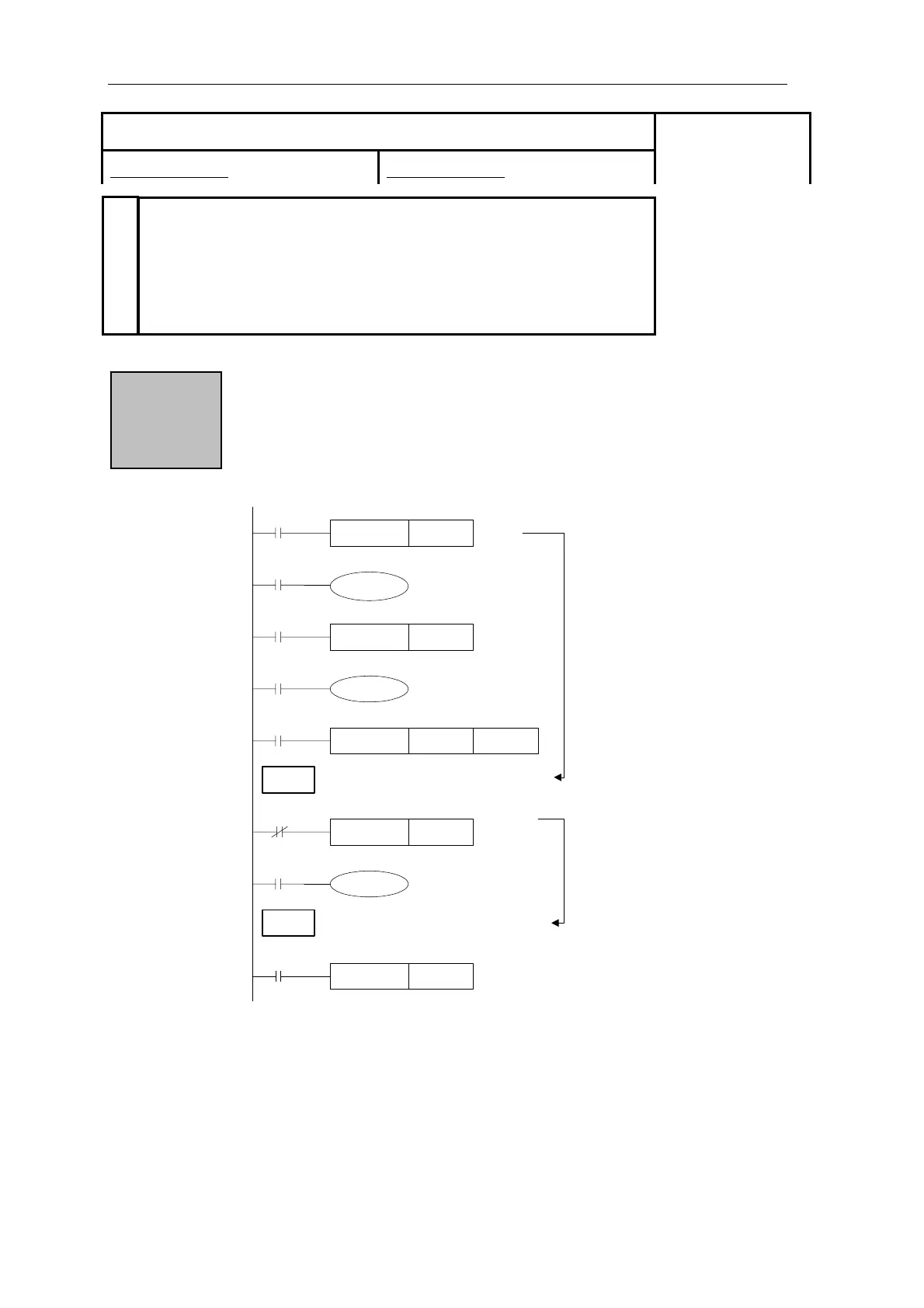

In the following chart, if X000“ON”, then jump from step 1 to the end step of
flag P6. When X000“OFF”, do not execute jump instructions.
CJ
Y0
X0
X1
X3
X4
X0
RST
T246 K1000
MOV
CJ
X2
X5
X6
P6
T246
K3 D0
P7
T246RST
Y0
P6
P7
z See the upward graph, Y000 turns to be dual coil and output. But
when X000=OFF, X001 activates. When X000=ON, X005 activates.
z CJ can not jump from one STL to another STL.
z If program timer T0~T640 and high speed counter C600~C640 jump
after driving, go on working, output point also activate.
Condition Jump [CJ]
16 bits instruction：CJ 32 bits instruction：-
Suitable Models：
XC1、XC3、XC5
Pointer: P
Soft Unit’s Bound: P0~P9999
Suitable Device
Function
and Action
