Thinget XC Series User Manual

Applied Instructions
212
RST C620
C620
M4
M5
D0(D1)
RST C622
C622
M6
M7
K100
RST C630
C630
Y002
K1000
RST C632
C632
Y004
D0(D1)
M8
M9
C630
M10
M11
C632

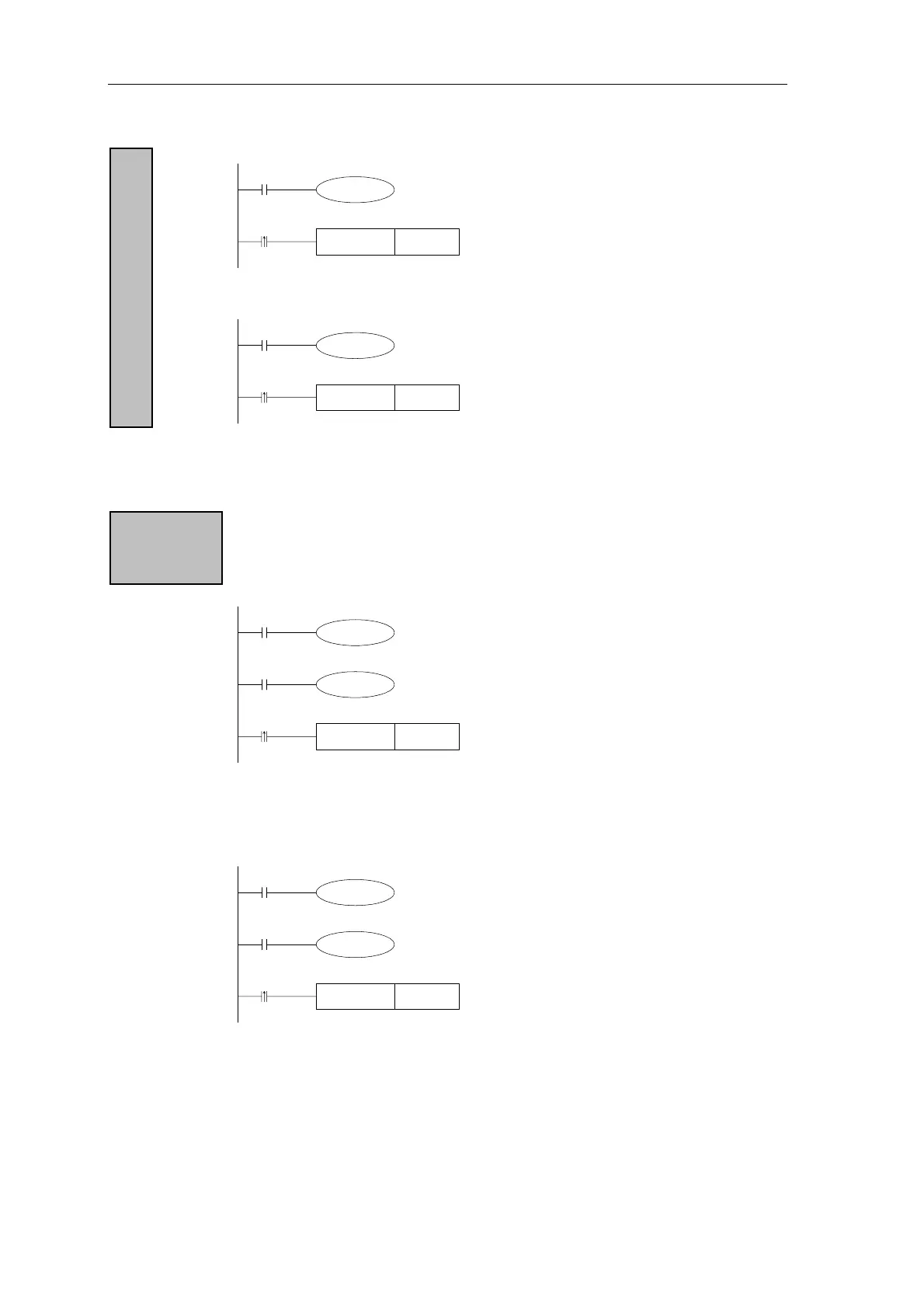

z When M4 is ON, C620 counts with OFF
→ON from X000, via OFF or ON status
from X001, decide the count direction. If
X001 is OFF, execute increase count; if
X001 is ON, execute decrease count”.
z When M6 is ON, C622 counts with
OFF→ON from X000, via OFF or
ON status from X002, decide the
count direction. If X003 is OFF,
execute increase count; if X003 is
ON, execute decrease count”.
Pulse + Direction input mode
AB phase
mode
AB phase counter realize increase/decrease count by the judgment of A、B phase.
The output contactor’s (correspond with the current value) action is the same with
the preceding single phase counter.
z When M8 is ON, C630 counts with
the input X000 (B phase), X001(A
phase) via interruption.
z If M9 is ON, execute RST instruction
to reset.
z If the current value exceeds the set
value, then Y002 is ON; If the current
value is smaller than the set value,
then Y002 is OFF
z When M10 is ON, C632 starts to
count. The count input is X002 (B
phase)、X003(A phase).
z Reset via M11.
z If the current value exceeds the set
value, then Y004 activates; If the
current value is smaller than the set
value, then Y004 is OFF
z In the condition of A phase input is OFF→ON, if B phase input is OFF, the counter is
increase count; if B phase input is ON, the counter is decrease count.
