Applied Instructions

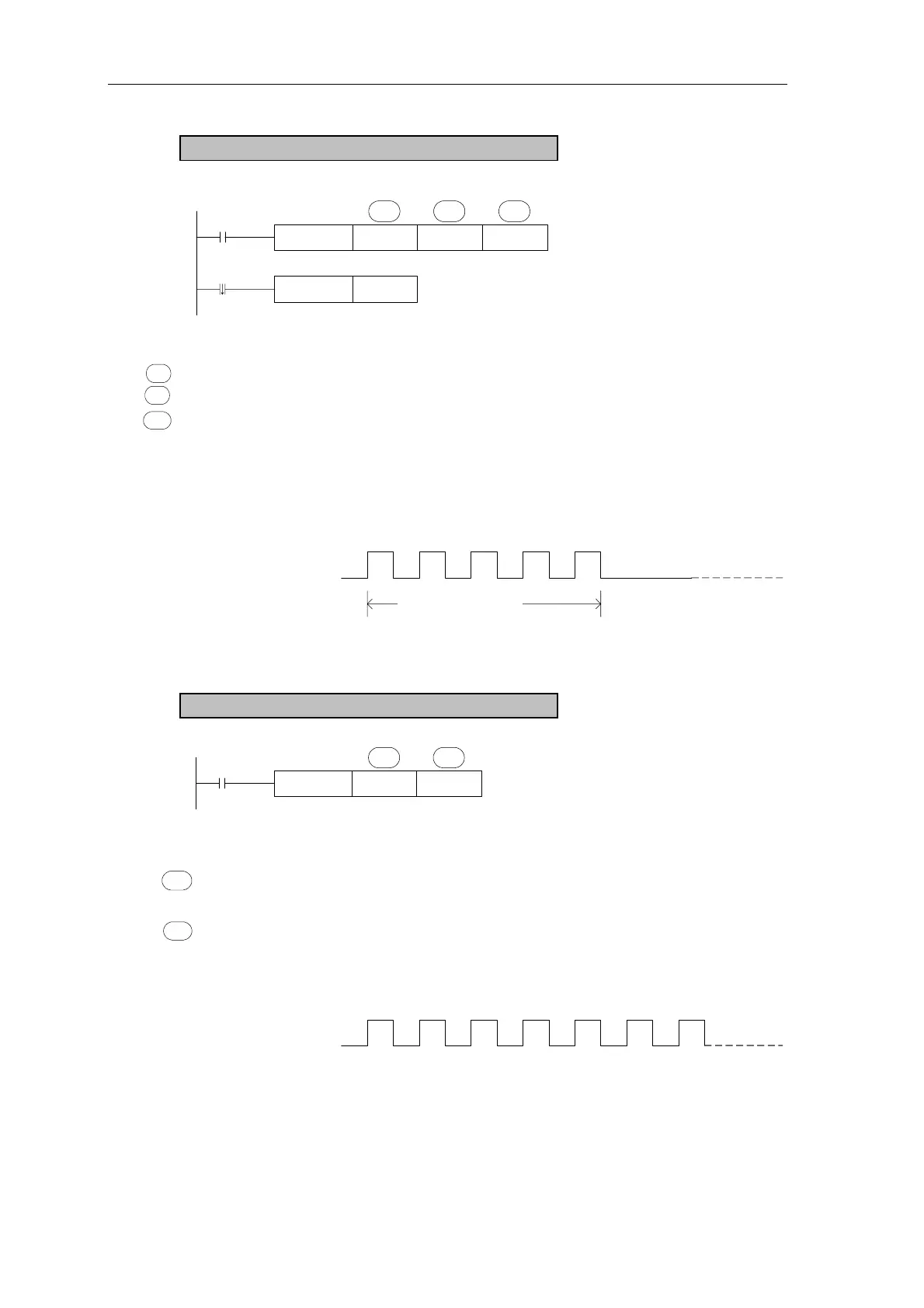

¾ PLSY Instruction:
PLSY K30 D1 Y0
M0
S1·
S2·
D·
M8170
RST M0
After finish outputting the set pulse number, output will auto stop.
¾ PLSF Instruction:
PLSF D0 Y0
M0
S· D·
Limited pulse output
Set pulse number
Sequential pulse output
z Generate certain quantity pulse with the assigned frequency; support 32 bits instruction [DPLSY].
Assign the Frequency. Operands: K、TD、CD、D、FD
Assign the generated pulse volume. Operands: K、TD、CD、D、FD
Assign Y port which generates pulse, can only output at Y000 or Y001
S1·
S2·
D·
z When M0 is ON, PLSY instruction output pulse of 30Hz at Y0, the pulse number is assigned by
D1, when sending pulse, coil M8170 sets ON. When the output pulse reach the set value, stop
pulse output, coil M8170 sets OFF, reset M0.
z Generate sequential pulse with changeable frequency form
z Support 32 bits instruction [DPLSF].
z Assign the frequency. Operands: K、TD、CD、D、FD
Bound: 200~400KHz (If the set frequency is lower than 200Hz, output 200Hz)
z Assign Y port which generates pulse, can only output at Y000 or Y001
z With the changing of the set frequency in D0, the output pulse frequency from Y0 changes.
z
D·
S·
Accumulate pulse number in register D8170
Continuously output pulse with the set frequency till pass the statement, then stop outputting.
215
