Tomey UD-8000 User Manual

3-163 ■

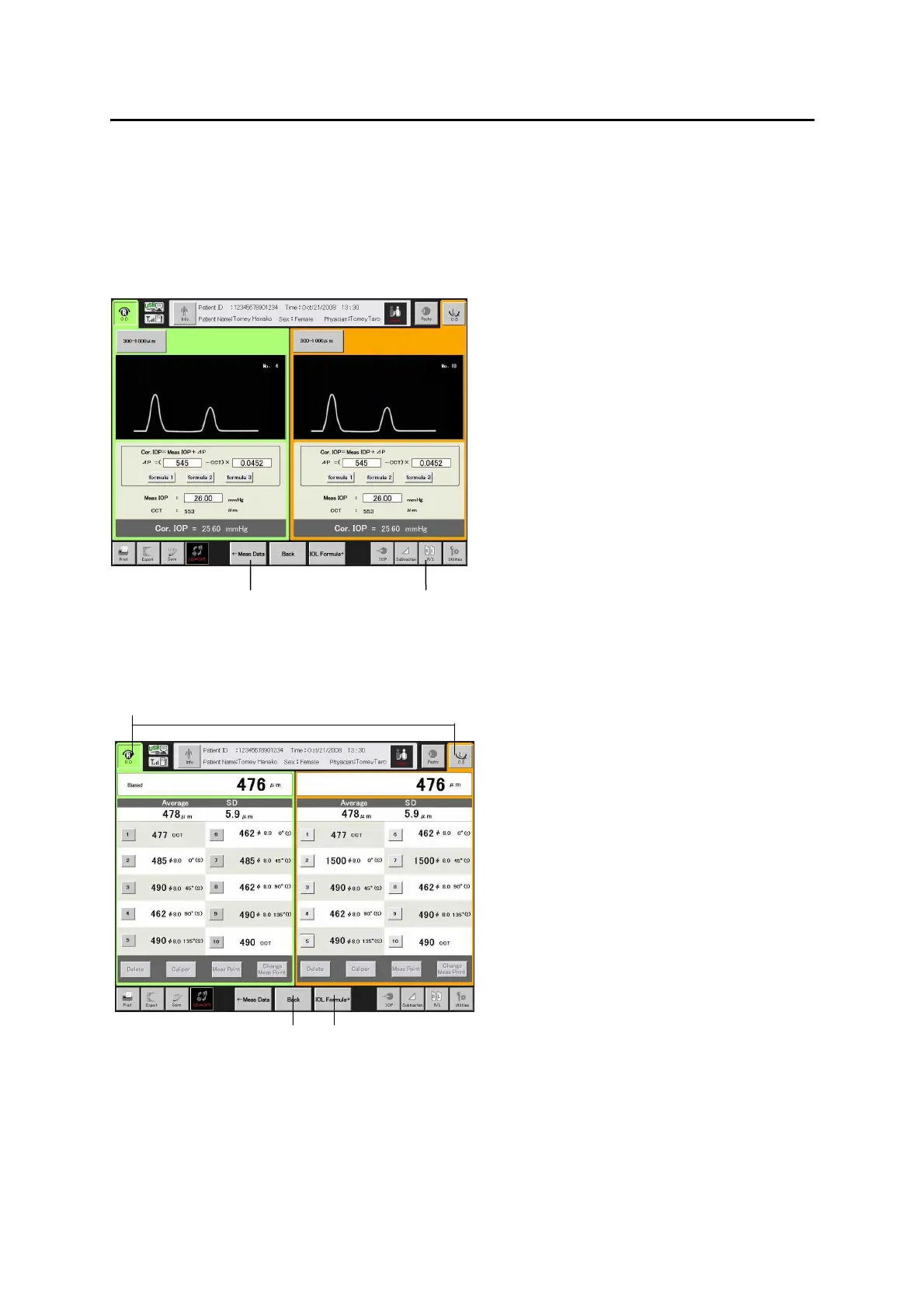

g) R/L alignment display function
This function simultaneously displays data of left and right eye by displaying two
aligned tabs which contain data of the patient’s left and right eye respectively.
However, this screen can only be used for viewing, and it is not possible to perform
setting or editing on it.
1) Touch the “R/L” button (1) to display the R/L alignment display screen.
2) Touch the “Meas Data” button (2) to display the aligned measurement data.
v
3) Touch the “IOP Formula” button (3) to display the aligned intraocular
pressure correction formula fields.
4) Touch “Back” (4) or “Inspected Eye Selection” button (5) to return to the
display of a single eye only.
3-121
(1)
(Fig. 1)
(2)
3-122
(4)
(5)
(3)
(Fig. 2)
