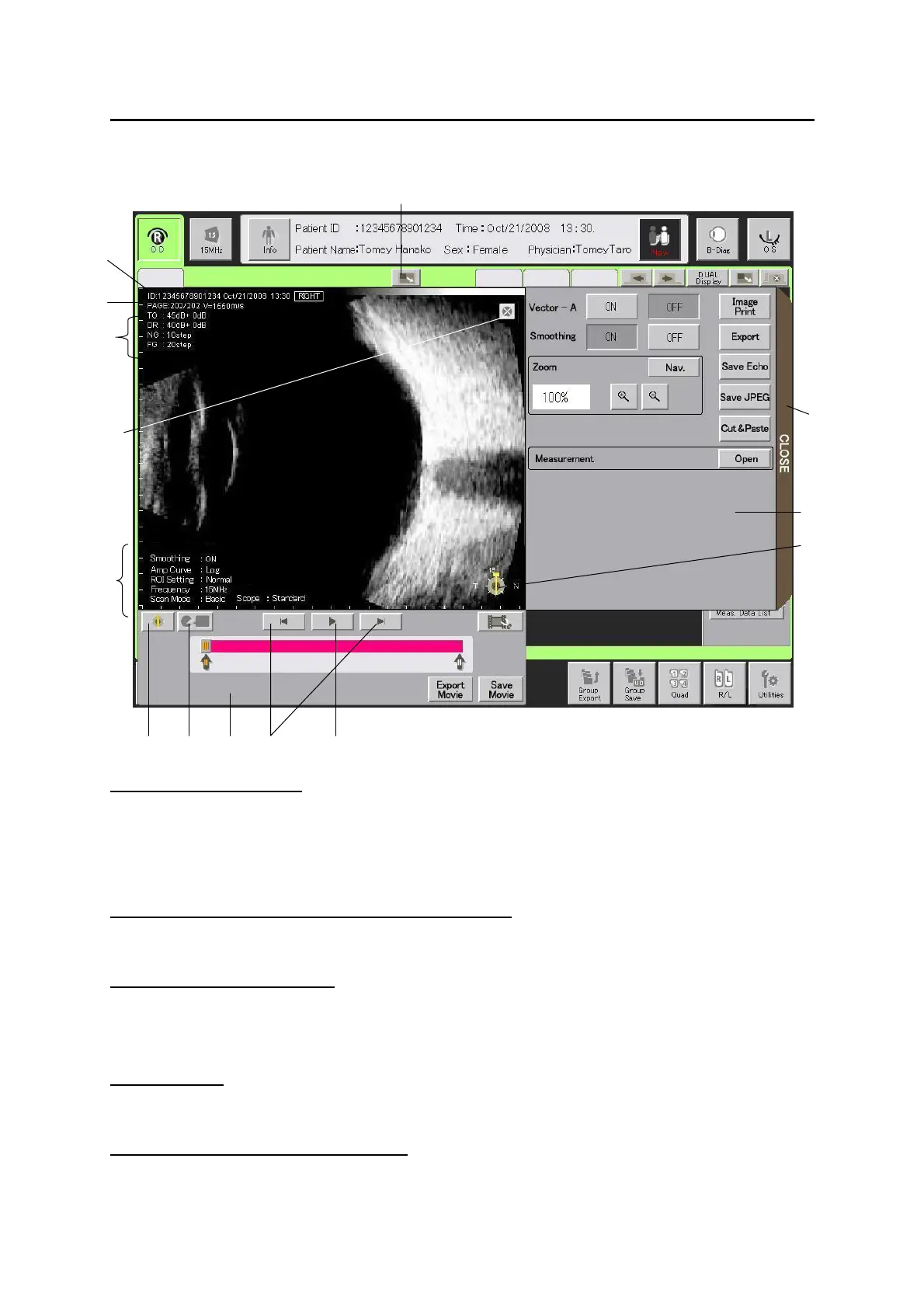

b) FREEZE screen
(1) Intra-image information
Indicates the ID, eye to be examined (R/L), and the examination time and date of the patient.
These pieces of information can be shown or hidden in the intra-image information display
settings of the utility. (Refer to “3.12.2 i) Contents on image.”)
(2) Image page number and converted acoustic velocity
Indicates the page number and converted acoustic velocity of the image being displayed.
(3) TG, DR, NG, and FG values
Indicates each set value of total gain (TG), dynamic range (DR), near gain (NG), and far gain
(FG), respectively.
(4) Clear button
Deletes the displayed image.
(5) Various settings of measurement data
Indicates the settings of the smoothing, gradation characteristics, target settings, frequencies,
2-14
(6)
(2)
(3)
(5)
(4)
(1)
(10)
(11)
(8) (9)
(12)
(14) (13)
(7)
