Chapter 2 – Implement Setup
5
Note: Multiple ECUs are required if there are more than 10
sections or more than one tank.
ECUs should be connected to the CAN2 connector on the console’s
termination harness. Start with all ECUs disconnected from the
CAN line and confirm that the harness is connected to the console.
Only one termination is necessary, placed at the ECU farthest from
the console.
Follow the steps below and, when prompted, connect the first ECU
to the CAN line. Only one ECU can be detected at a time. Once
each ECU is detected, connect the next ECU when prompted.
The blue status indicator on the ASC-10 will flash three times
slowly, then three times quickly to indicate normal operations.
8. Check only one ECU is connected and select next.

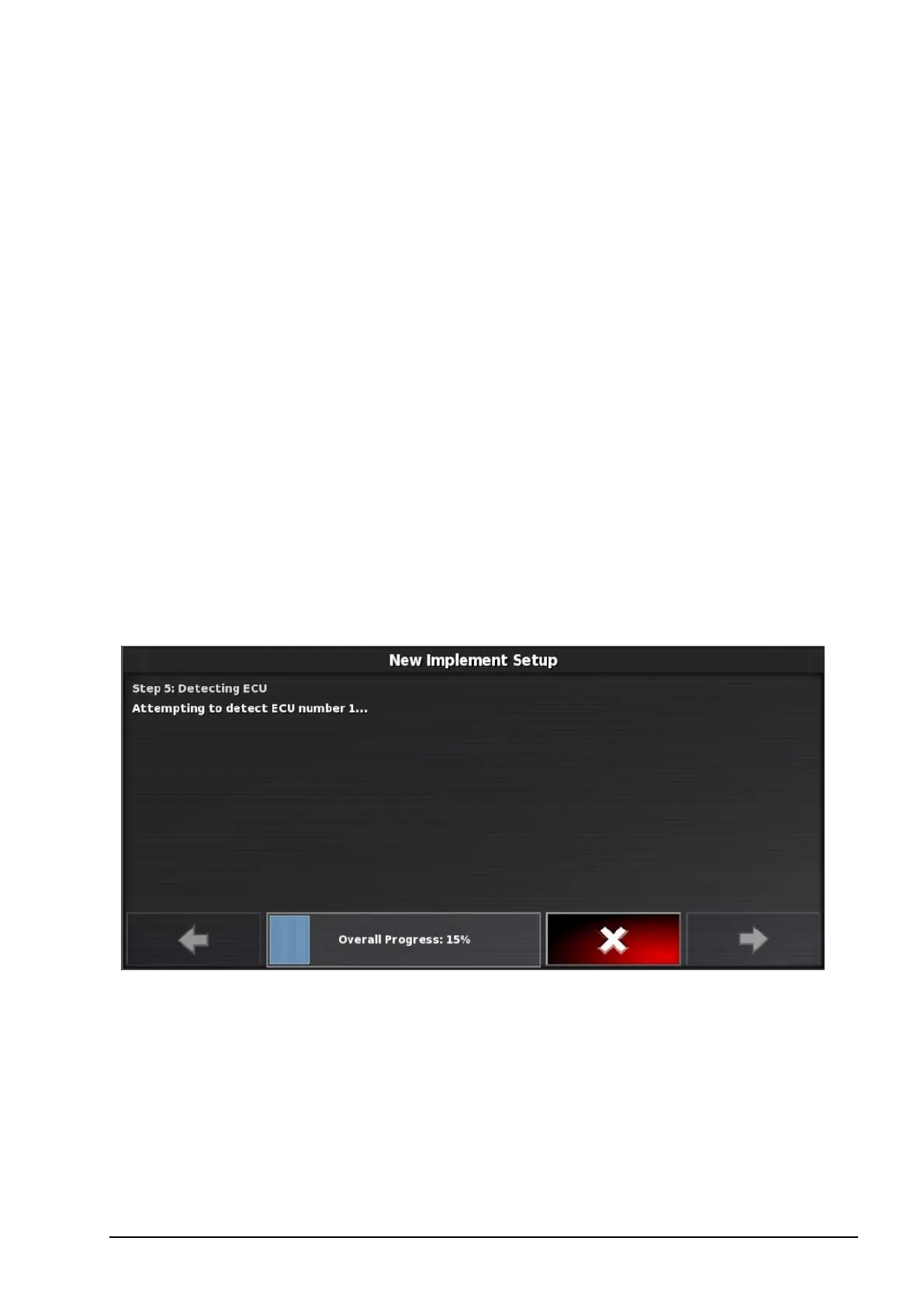

The system will try to detect the connected ECU. If not successful,
check that the ECU is connected.
9. Once the ECU is detected, select next.
A summary of detected ECUs appears.
