Chapter 5 – Operation (X35/X30/X25)
51

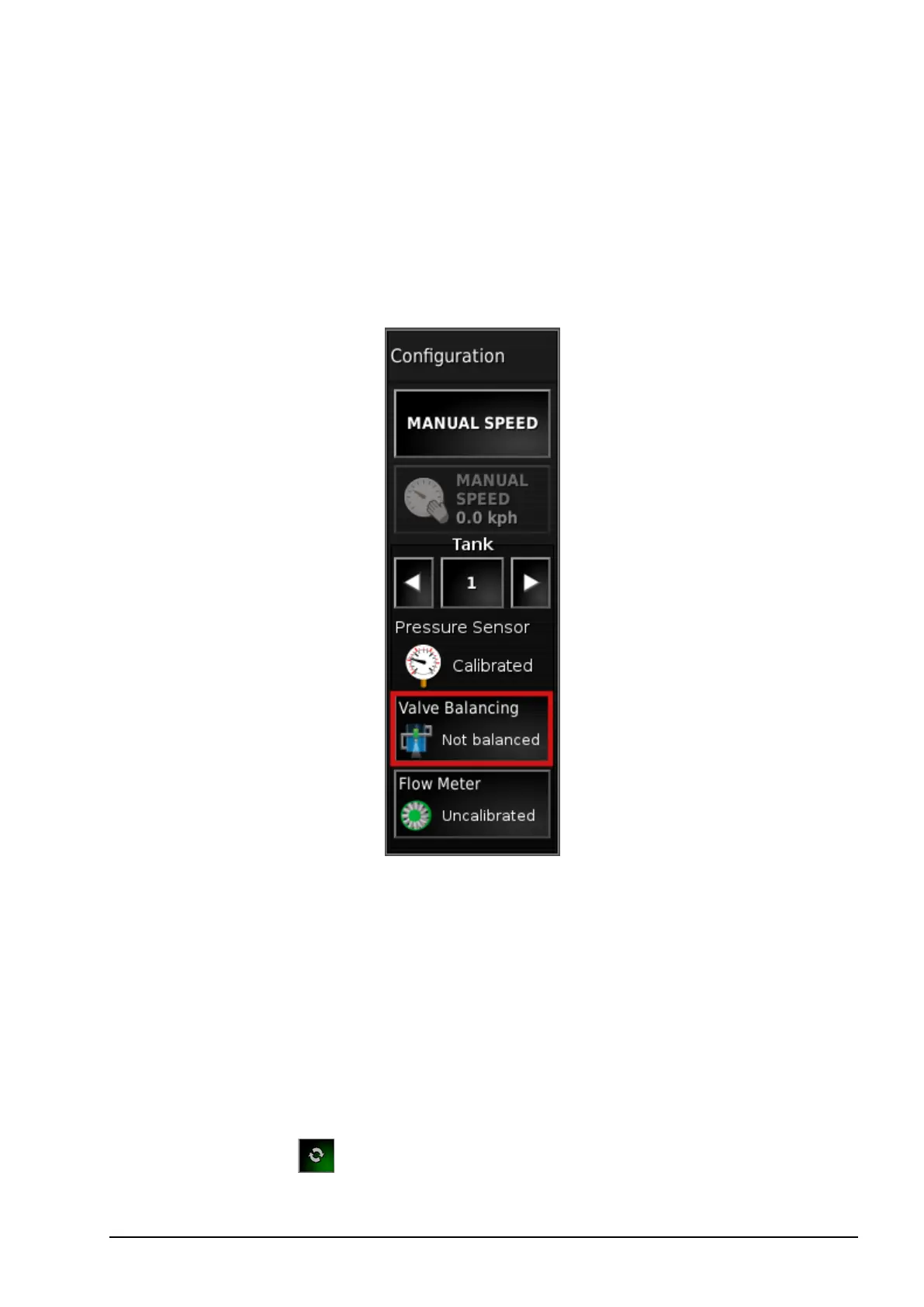

5.5.3. Valve balancing wizard
For sprayers fitted with balanced section valves, the valve balancing
wizard helps you to balance the flow that returns to the tank when the
section valve is turned off, to the flow that goes to the nozzles when the
section valve is turned on. The section switches are automatically
toggled to streamline the process of ensuring valves are balanced.
1. Select the nozzles that are being used.
2. Enter the required application rate and speed, then turn on the
master switch. The balancing process begins with all sections on at
the entered rate and speed to determine the required flow rate and
pressure.
3. Wait for the flow rate and pressure readings to settle. A lock is
displayed next to the readings once they are confirmed.
4. Select the section to balance first (Section 1 is selected by default)
and turn it off .
