Chapter 5 – Operation (X35/X30/X25)
49
5.5.1. Wheel sensor calibration
If Wheel Sensor is selected in the Setup screen Implement / Sprayer /
Speed Source, the wheel factor must be calibrated.
Wheel factor defines how many meters per pulse are received from the
wheel speed sensor.
To calibrate the wheel factor:

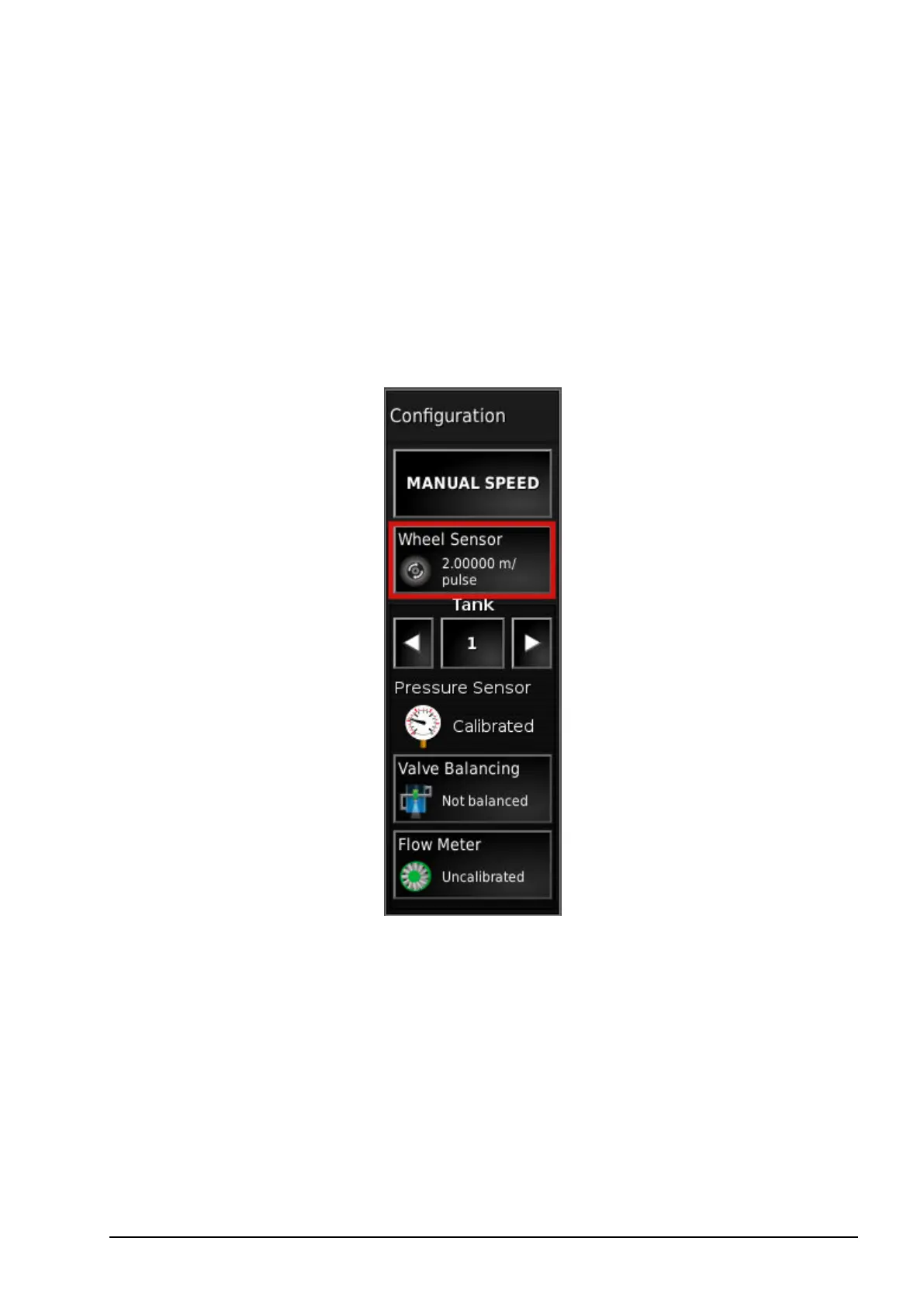

1. Select Wheel Sensor from the sprayer configuration screen.
The Auto Speed Cal wizard displays.
2. Follow the wizard prompts to calibrate the wheel sensor.
