Topcon GR-5 User Manual

Receiver and File Maintenance
GR-5 Operator’s Manual
5-14
3. When finished, click Exit on the Option Manager dialog box,
then click FileDisconnect to disconnect from PC-CDU (and
prevent conflicts with serial port management).

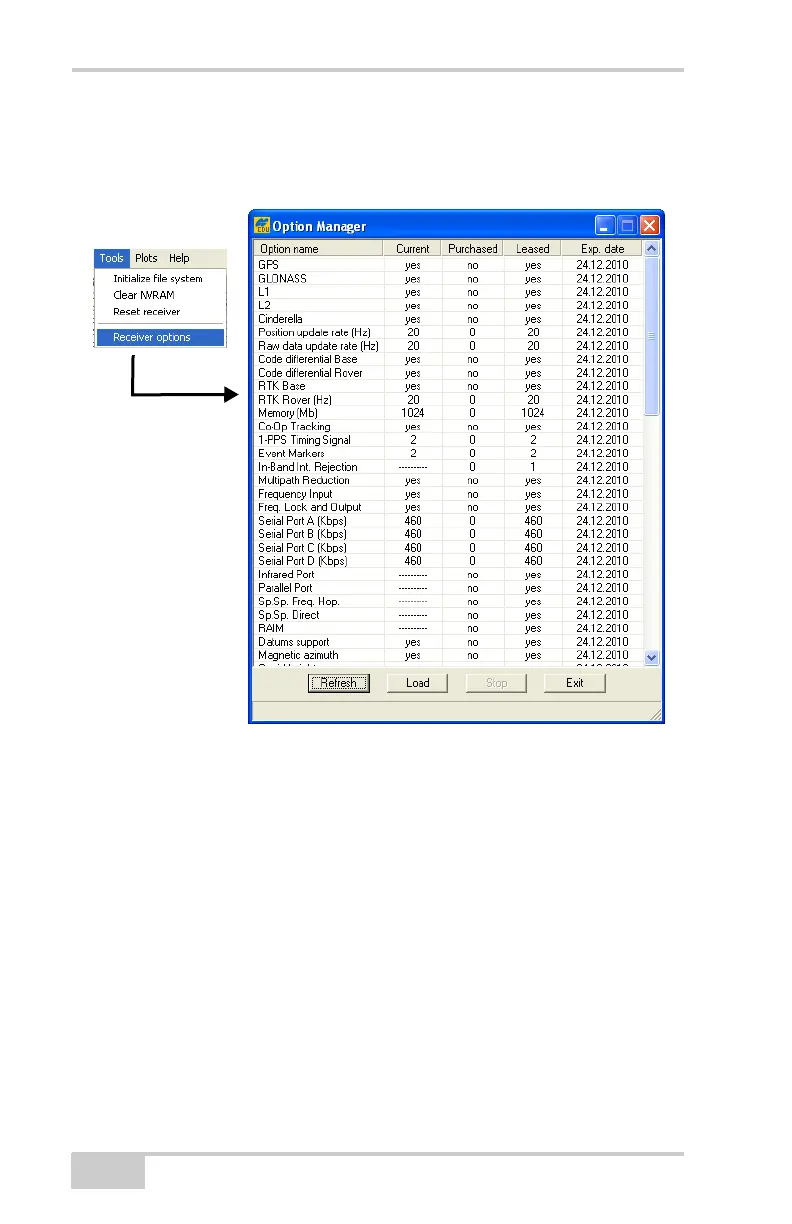

Figure 5-15. View Option Manager
Loading an OAF using TRU
Topcon Positioning System dealers provide customers with OAF
files. For any OAF related questions, e-mail TPS at
options@topconps.com and include the receiver’s ID number (see the
bottom of the receiver for the ID).
1. To load a new OAF, follow steps one and two in “Loading an
OAF using TRU” on page 5-14.
2. Click Upload OAF at the bottom of the Receiver Options dialog
box (see Figure 5-15 on page 5-14).
