GR-5 Configuration
GR-5 Operator’s Manual
3-42
MINTER Configuration
The Minimum INTERface (MINTER) consists of two keys (power
and FUNCTION) that control the receiver’s operation, four LEDs
(STAT, REC, RX/TX, and BT) that display the receiver’s operational
status, and two LEDs that display the battery status (Figure 3-38).

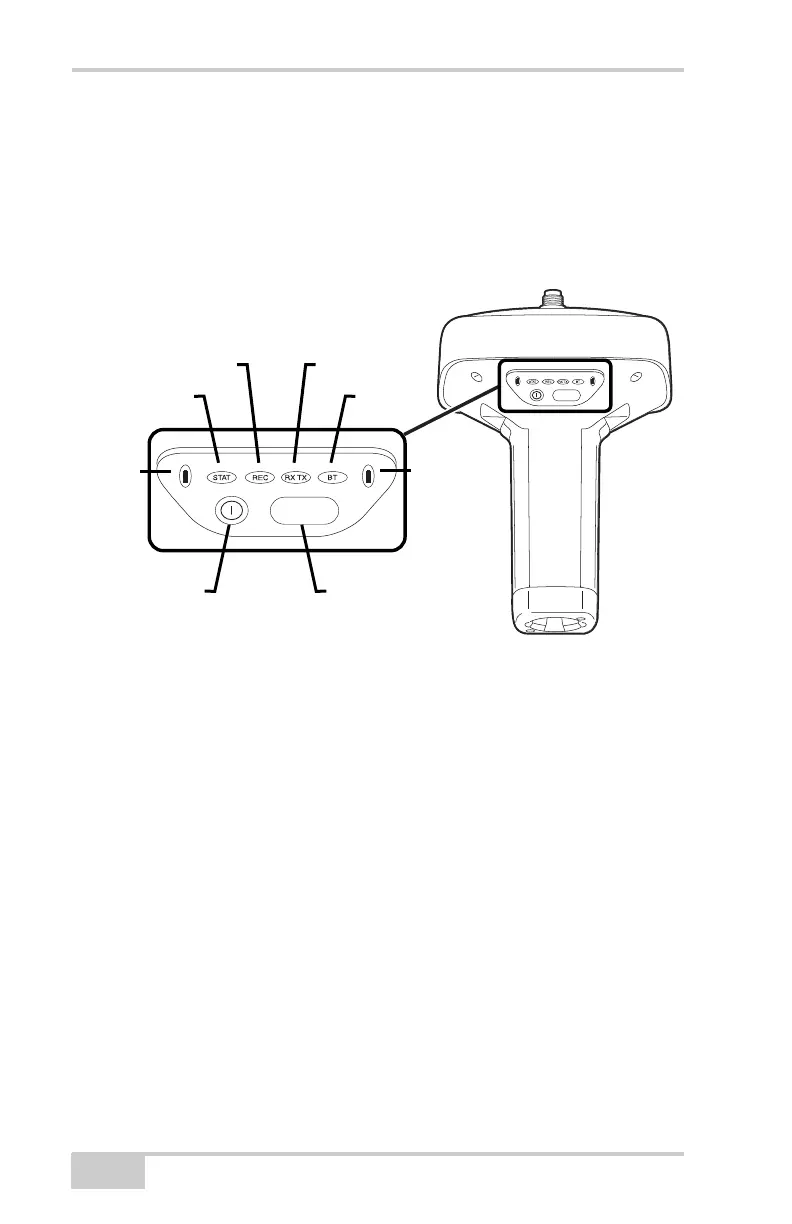

Figure 3-39. MINTER
The MINTER performs the following functions. For more
information on using the MINTER, see “MINTER Operation” on
page 4-8.
• Turns the receiver on or off; puts it in Sleep mode.
• Turns data recording on or off (FUNCTION button).
• Changes the receiver’s information mode.
• Shows the number of GPS (green) and GLONASS (orange)
satellites being tracked (STAT LED).
• Shows the data recording status (REC LED).
• Shows each time data is recorded to internal memory (REC
LED).
• Shows the status of post-processing mode (static or dynamic)
when performing a Post-Processing Kinematic survey with the
help of FN key (REC LED).
FUNCTION
FUNCTION
Battery
STAT
REC RX TX
BT
Power
Button
FUNCTION
Button
Battery
