Managing Receiver Options
P/N 7010-1004
5-15
3. Navigate to the location of the new Option Authorization File.
OAFs have .jpo or .tpo extensions and are unique to each receiver
(Figure 5-17).

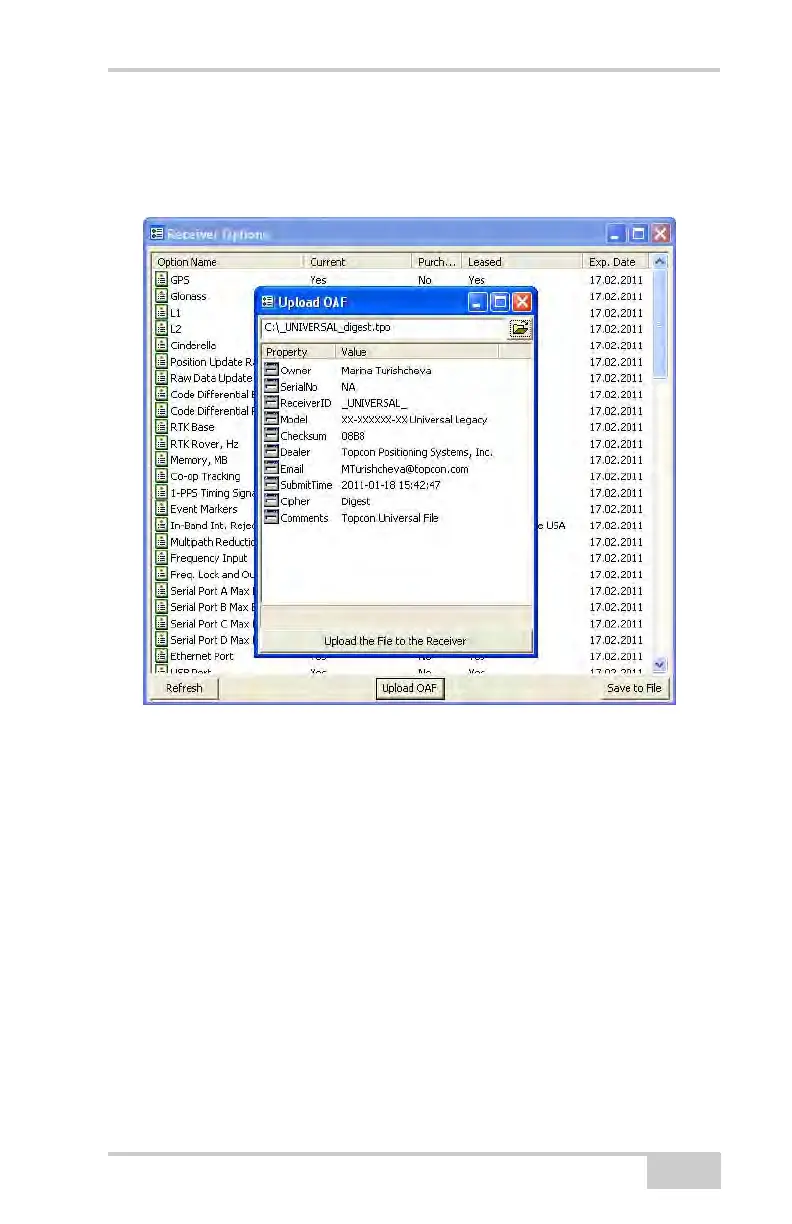

Figure 5-16. Load OAF
4. Select the appropriate file and click Upload to the Receiver
(Figure 5-17). The new receiver option loads onto the receiver
and the Option Manager table updates.
5. When finished, click Save Profile on the Receiver Options dialog
box, then click FileDisconnect to prevent conflicts with serial
port management.
Loading an OAF using PC-CDU
Topcon Positioning System dealers provide customers with OAF
files. For any OAF related questions, e-mail TPS at
options@topconps.com and include the receiver’s ID number (see the
bottom of the receiver for the ID).
