Pre-survey Preparation
GR-5 Operator’s Manual
2-10
2. Connect the receiver-to-SAE power cable and the power supply-
to-outlet cable to the AC adapter.
3. Plug the power supply-to-outlet cable into an available outlet.
Leave for approximately 6 hours to fully charge the batteries.
To charge the batteries using the charging cradle:
1. Remove the batteries from the receiver and insert them into the
charging cradle.
2. Connect the power cable to the power supply unit.
3. Connect the SAE connectors on the power adapter cable and
power supply unit.
4. Connect the power adapter cable to one of the ports on the
charging cradle (either port will charge both/either battery).
5. Plug the power supply to an available outlet. Leave for
approximately 6 hours to fully charge the batteries.

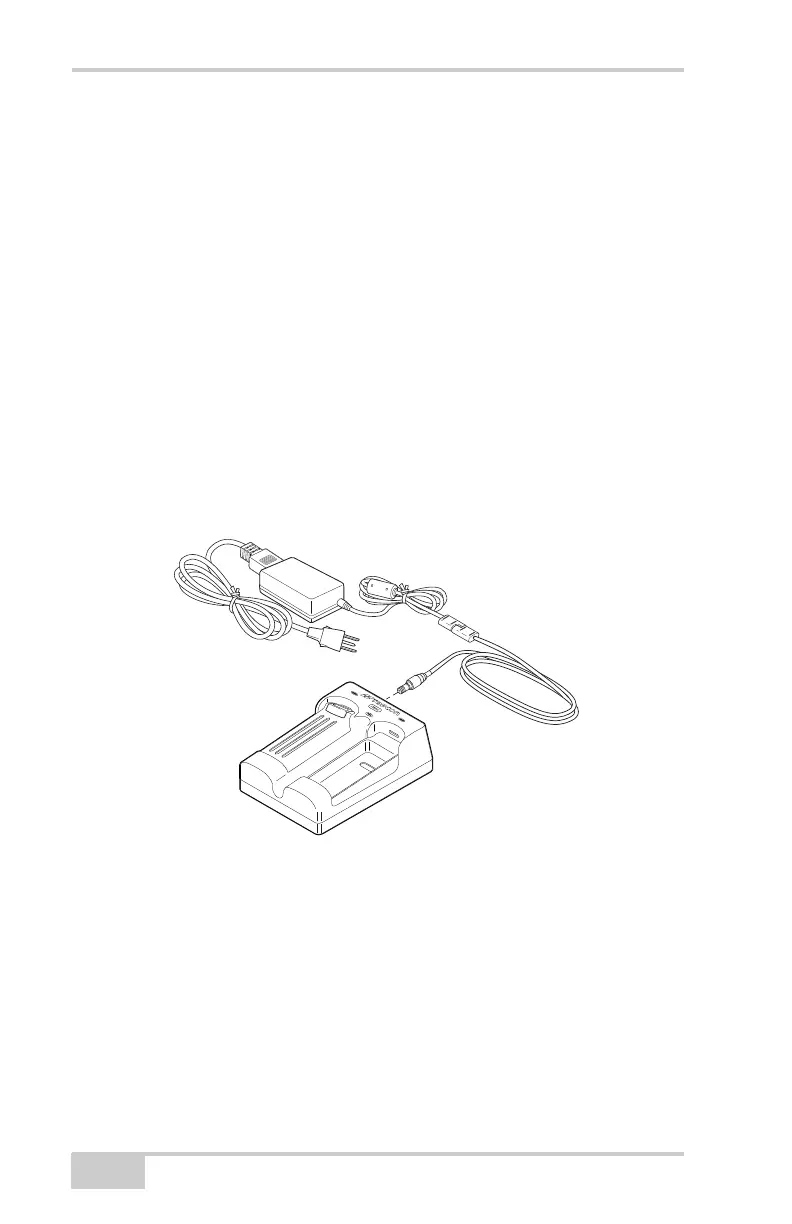

Figure 2-6. Insert Batteries in Charger and Connect to Outlet
Leaving the Batteries on Charge
The batteries can be safely left in the receiver or the charging cradle
once charging is complete. Doing so will not overcharge or damage
the batteries.
The batteries can also be attached/detached to/from the receiver or
charging cradle at any time without harming the batteries, the
To grounded outlet
