USB Connector
Rimmed in yellow, the USB connector is a sealed receptacle, 4 pin
TPS cable connector (Figure A-3).

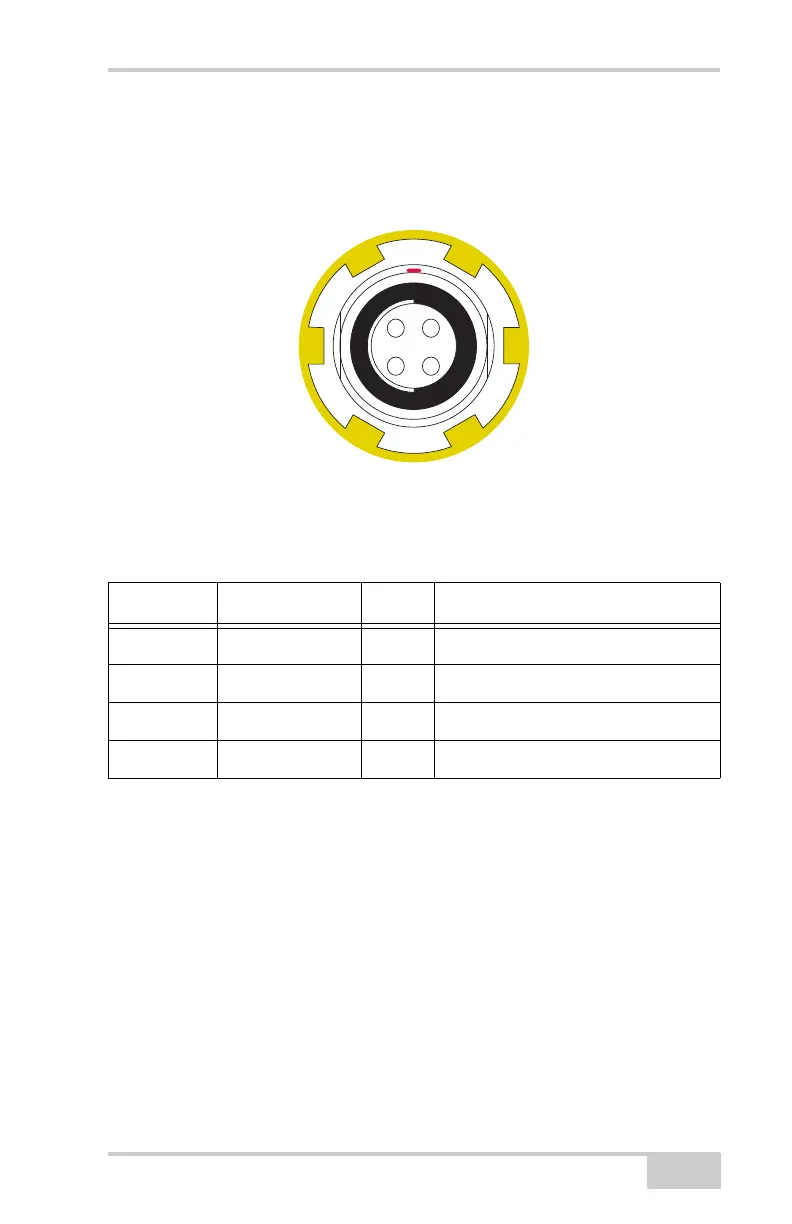

Figure A-3. USB Connector for GGD Options
Table A-11 gives the USB connector specifications.
Table A-11. USB Specifications
Number Signal Name Dir Details
1 USB_PWR P Bus power input
2 USB D- I/O Data minus
3 USB D+ I/O Data plus
4 GND - Ground
12
3 4
