Topcon GR-5 User Manual

Pre-survey Preparation
GR-5 Operator’s Manual
2-16
Attaching the Batteries
To attach the batteries to the GR-5 (Figure 2-12):
1. With the battery slightly tipped, place the bottom of the battery
into the bottom of the battery compartment.
2. Gently push the top of the battery into the battery compartment
until it snaps into place. Make sure that the clip at the top of the
battery completely snaps into place.

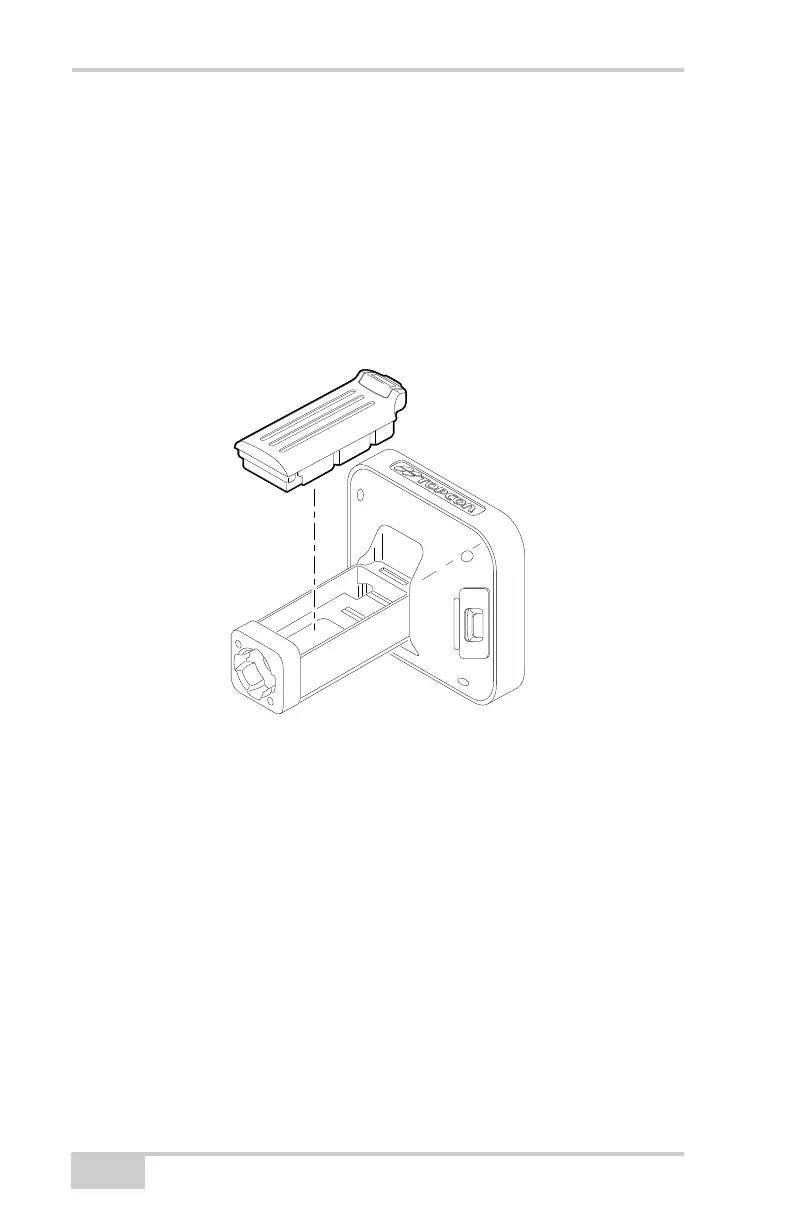

Figure 2-12. Insert the GR-5 Batteries
Detaching the Batteries
To detach the batteries from the GR-5, so that they can be charged or
replaced:
Using the clip at the top of the battery, gently pull down and out to
detach the battery from the receiver (Figure 2-13).
