Cables
The GR-5 package includes standard communication and power
cables for configuring the receiver and providing a power source to
the receiver. Table 1-3 lists the cables included in the GR-5 package.

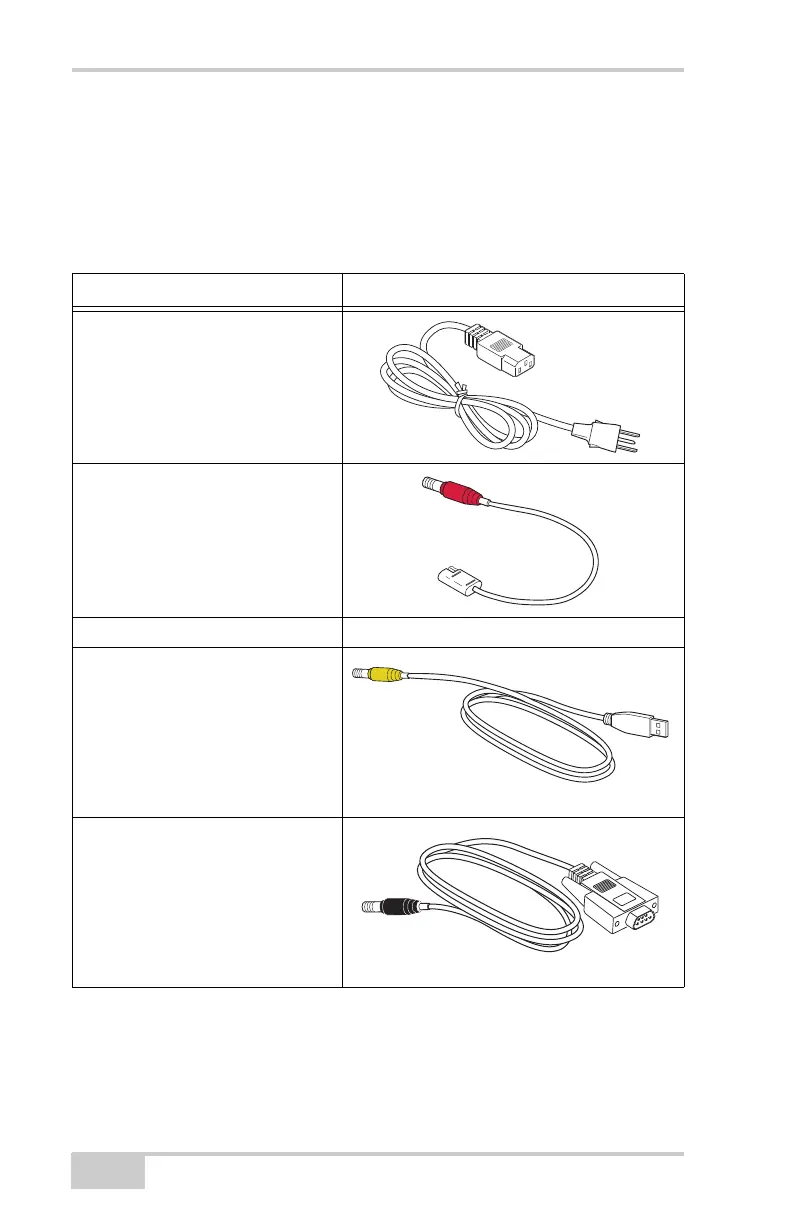

Table 1-3. GR-5 Package Cables
Cable Description Cable Illustration
Power cable
Connects the power supply unit to a
grounded outlet.
U.S. p/n 14-008052-01
Europe p/n 14-008054-01
Australia p/n 14-008053-01
Receiver power/charging cable
Connects the receiver and the
power supply unit via SAE
connectors for battery charging.
Body of connector is red.
p/n 14-008016-03
USB cable
Connects the receiver to an external
device (controller or computer) for
high-speed data transfer and
receiver configuration. Body of
connector is yellow.
p/n 14-008070-01
Serial cable
Connects the receiver to an external
device (controller or computer) for
data transfer and receiver
configuration. Body of connector is
black.
p/n 14-008005-02
