Power Connector
Rimmed in red, the power connector (Figure A-1) is a sealed
receptacle, 5 pin, ODU part number G80F1C-T05QF00-0000.

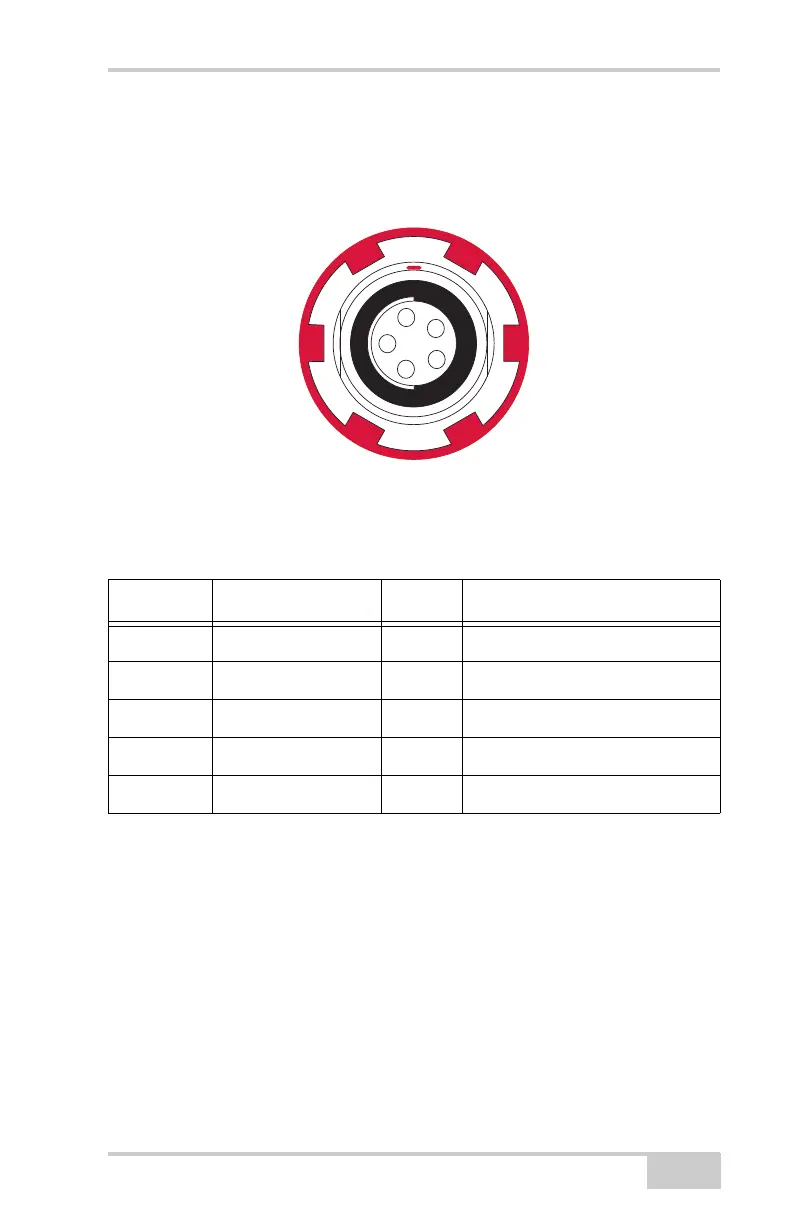

Figure A-1. Power Connector
Table A-9 gives power connector specifications.
Table A-9. Power Connector Specifications
Number Signal Name Dir Details
1 Power_INP P 9 to 21 volts DC input
2 Power_INP P 9 to 21 volts DC input
3 Power_GND P Ground, power return
4 Power_GND P Ground, power return
5 Aux_Power P 9 to 21 volts DC input
1
2
3
4
5
