Powering the Receiver
P/N 7010-1004
2-17

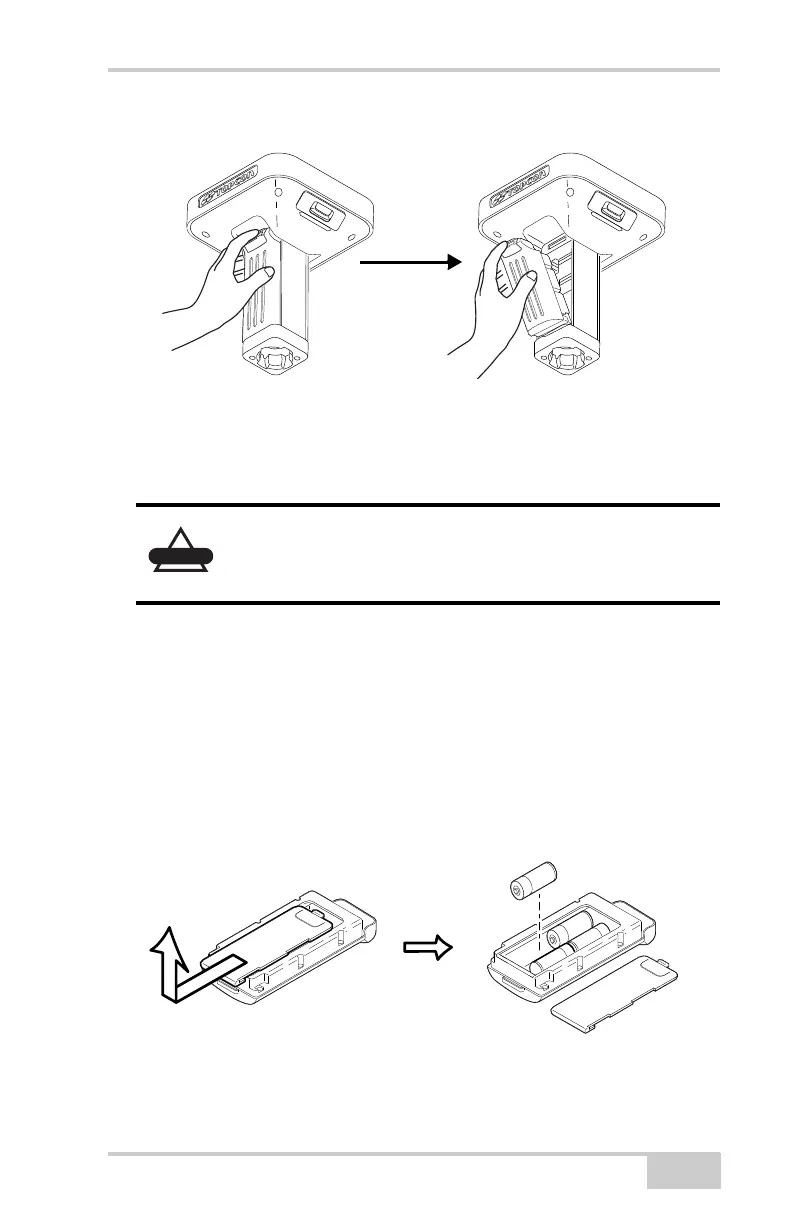

Figure 2-13. Detach the GR-5 Batteries
Assembling the AA Battery Shell
To assemble the AA battery shell to the GR-5 (Figure 2-14):
1. Slide the back cover of the AA battery shell down and lift off.
2. Insert four AA batteries as shown on the inside of the shell (and
in Figure 2-14 below).
• The batteries on the left lay with the positive end towards the
bottom of the shell.
• The batteries on the right lay with the positive end towards
the top of the shell.
3. Replace the back cover of the shell.
Figure 2-14. Remove Cover and Insert AA Batteries
CAUTION
Do not use rechargeable AA batteries.
Do not use the AA battery shell when the radio
modem is in transmitter mode.
- +
- +
+ -
+ -
